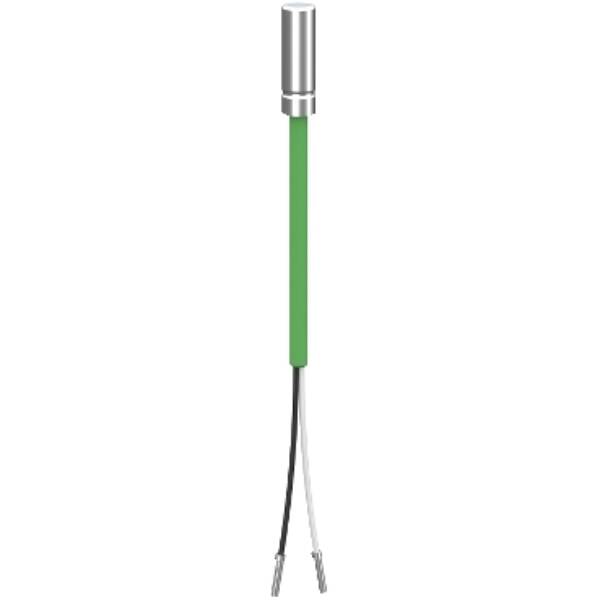

"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 50 to 110 degrees Celsius." "This temperature probe has an IP 68 rate and is equipped with a 3-meter two-conductor cable." "It is an NTC probe." "It is furnished with 2-conductor cable for controller side for electrical connection." "The cable measures 3m." "It measures 20mm long, 6mm wide, and weighs 0.175kg." "It is made to control temperature in HVAC or Pumping Applications." "It is sold in a 50-piece package." "It has a clip-on fixing mode." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM1STPTTSN6203P

Weight (kg)

0.04 kg

Type

Modicon M171/M172

Model

Clamp

Material

Other

Measuring range

-50…110 Degrees celsius

Connection cable length

3
