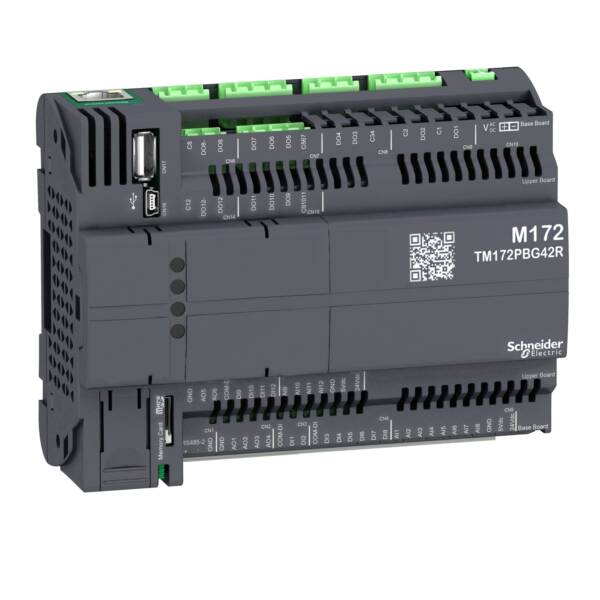

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 12 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 12 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.385kg. The main application of this module is HVAC control. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM172PBG42R

Weight (kg)

0.42 kg

Type

Modicon M171/M172

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

2

SIL according to IEC 61508

None

Number of relay outputs

9

With optical interface

FALSE

Additional program memory possible

FALSE

System accessory

FALSE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

110

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

144

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

60.5

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With display

FALSE

Processing time (1K, binary operation)

0.3

Supporting protocol for SafetyBUS p

FALSE

Model

Compact

Voltage type of supply voltage

AC/DC

Type of memory

Other

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Memory size

0.512

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supply voltage AC 50 Hz

24 V

Supporting protocol for TCP/IP

TRUE

Front build in possible

FALSE

Supply voltage AC 60 Hz

24 V

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

TRUE

Appendant operation agent (Ex ib)

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Suitable for safety functions

FALSE

Number of digital outputs

12

Supporting protocol for MODBUS

TRUE

Number of digital inputs

12

Supporting protocol for Data-Highway

FALSE

Number of analogue outputs

6

Supply voltage DC

20…38 V

Rack-assembly possible

FALSE

Number of analogue inputs

12

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of HW-interfaces RS-485

2

Number of HW-interfaces industrial Ethernet

1
