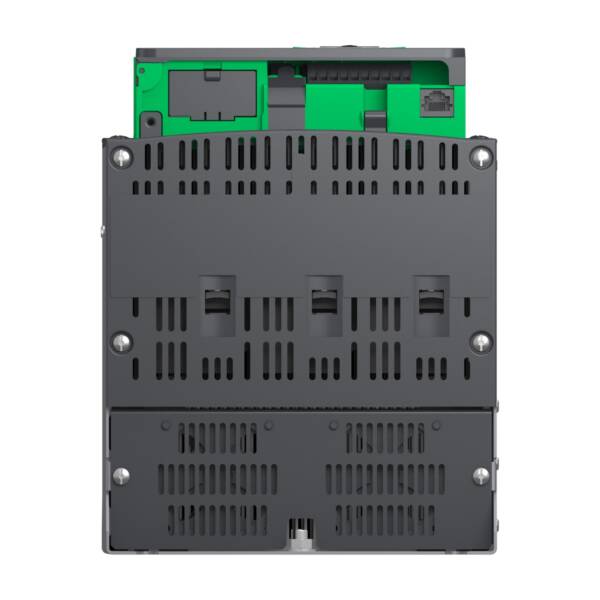

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 110A in normal duty, it supplies motor from 30kW to 90kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 190mm (width) x 247mm (depth) x 290mm (height) and it weighs 8,3kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH. test1

Brand

Schneider Electric

Range

Altivar Soft Starter ATS480

Part No

ATS480C11Y

Weight (kg)

9.88 kg

With display

FALSE

Rated control supply voltage Us at AC 50HZ

208…690 V

Rated operating voltage Ue

208…690 V

Rated control supply voltage Us at AC 60HZ

208…690 V

Release class

Other

Rated operation current Ie at 40 °C Tu

110

Internal bypass

FALSE

Torque control

TRUE

Rated power three-phase motor, inline, at 230 V

30

Voltage type for actuating

AC

Rated power three-phase motor, inline, at 400 V

55

Integrated motor overload protection

TRUE

Function

Single direction

Rated power three-phase motor, inside delta, at 230 V

55

Degree of protection (IP)

IP20

Rated power three-phase motor, inside delta, at 400 V

90

Rated surrounding temperature without derating

40
