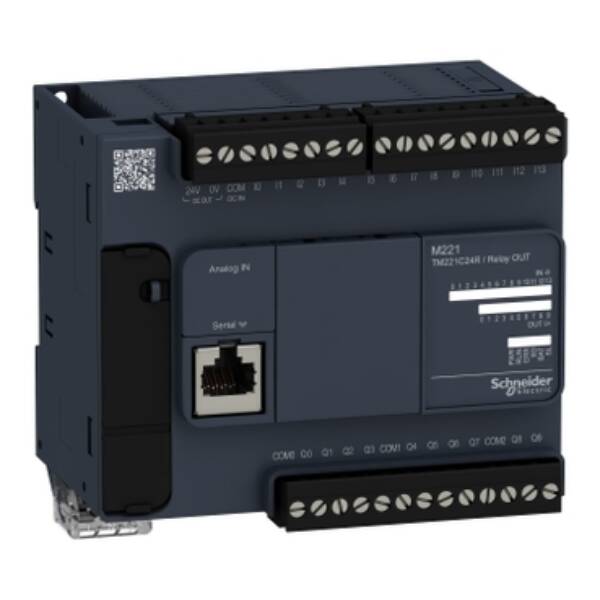

controller M221 24 IO relay - Schneider Electric - TM221C24R
controller M221 24 IO relay - Schneider Electric - TM221C24R

TM221C24R

controller M221 24 IO relay - Schneider Electric - TM221C24R

Automation

List Price £313.05 +VAT

Our Price £250.44 +VAT

SAVE 21% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete inputs and 10 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Brand
Schneider Electric
Range
Logic Controller - Modicon M221
Part No
TM221C24R
Weight (kg)
0.64 kg
Type
Logic Controller - Modicon M221
Supporting protocol for SERCOS
FALSE
Number of HW-interfaces USB
1
SIL according to IEC 61508
None
Number of relay outputs
10
With optical interface
FALSE
Max. number of time switches
255
System accessory
FALSE
Additional program memory possible
TRUE
Performance level acc. EN ISO 13849-1
None
Radio standard GPRS
FALSE
Height
103.6
Supporting protocol for INTERBUS-Safety
FALSE
Width
110
Redundancy
FALSE
Supporting protocol for AS-Interface Safety at Work
FALSE
Radio standard GSM
FALSE
Explosion safety category for dust
None
Radio standard UMTS
FALSE
Depth
75.9
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
FALSE
Supporting protocol for Foundation Fieldbus
FALSE
With display
FALSE
Processing time (1K, binary operation)
0.2
Model
Compact
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
AC
Type of memory
RAM
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Memory size
512
Supporting protocol for PROFIsafe
FALSE
Radio standard Bluetooth
FALSE
Supporting protocol for ASI
FALSE
Supporting protocol for PROFIBUS
FALSE
Radio standard WLAN 802.11
FALSE
Appendant operation agent (Ex ia)
FALSE
Supply voltage AC 50 Hz
85…264 V
Supply voltage AC 60 Hz
85…264 V
Front build in possible
FALSE
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Appendant operation agent (Ex ib)
FALSE
Supporting protocol for CAN
FALSE
IO link master
FALSE
Supporting protocol for INTERBUS
FALSE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
TRUE
Supporting protocol for MODBUS
TRUE
Suitable for safety functions
FALSE
Supporting protocol for Data-Highway
FALSE
Number of digital inputs
14
Number of analogue inputs
2
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-485
1
Number of HW-interfaces RS-232
1

Datasheet for TM221C24R - controller M221 24 IO relay - Schneider Electric - TM221C24R
