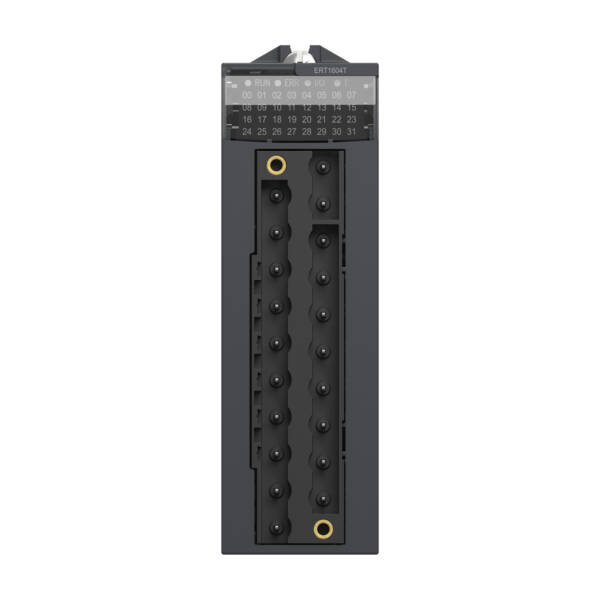

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This multifunction input module has 16 inputs with hot swap function. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. It is an module with a rated supply voltage of 24V DC, 48V DC to 60V DC, 110V DC to 125V DC and a current consumption of 30mA. This product is robust, high quality and based on the latest innovative technology. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height). It is suitable for medium to large process applications. This product is certified by Merchant Navy, C-Tick and GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXERT1604T

Weight (kg)

0.15 kg

Type

Modicon X80 I/Os

Single-axis positioning possible

FALSE

Number of functions

1

Single-axis controller possible

FALSE

Suitable for multi-axis positioning

FALSE

SIL according to IEC 61508

None

Suitable for counting

FALSE

Suitable for weighting

FALSE

Suitable for temperature control

FALSE

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Suitable for NC

FALSE

Height

100

Suitable for SSI

FALSE

Suitable for welding control

FALSE

Appendant operation agent (Ex ib)

FALSE

Suitable for pressure control

FALSE

Width

150

Suitable for incremental data detection

FALSE

Function electronic positioning available

FALSE

Redundancy

FALSE

Suitable for safety functions

FALSE

Suitable for CNC

FALSE

Explosion safety category for dust

Other

Suitable for detection absolute value

FALSE

Depth

242

Explosion safety category for gas

Other

Flux controller possible

FALSE

Suitable for flux measurement

FALSE

Suitable for flying saw

FALSE

Suitable for multi-axis control

FALSE

Suitable for path controller

FALSE

Suitable for cam controller

FALSE
