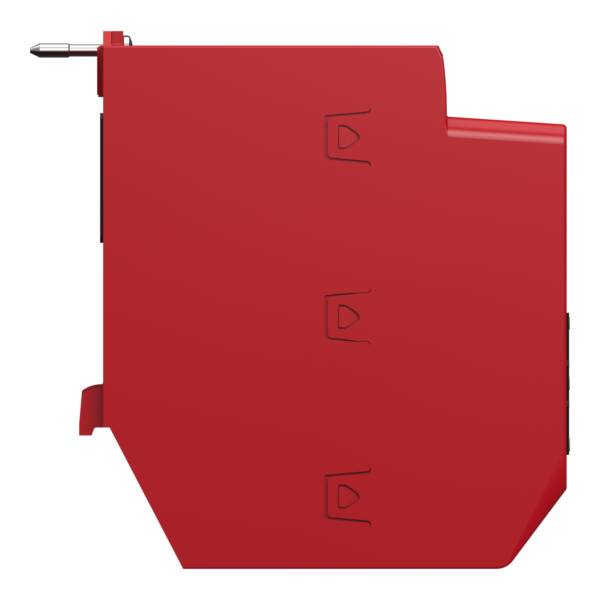

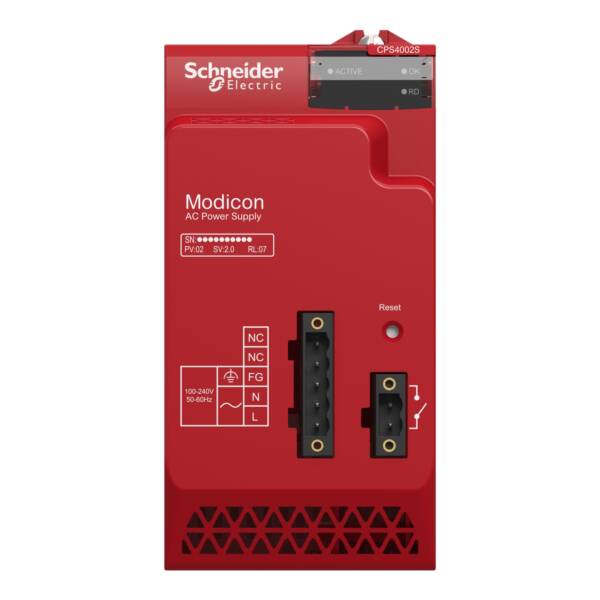

This cord set is part of the Modicon X80 range, an offer of common modules and installation accessories for M580 and M340 automation platforms. This power supply module with a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC and UL. It meets EN 61131-2, EN 61000-6-5, EN 61850-3 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock. The Modicon X80 range is one important part of EcoStruxure Plant, an open, flexible, reliable, sustainable, safe and secure architecture.

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXCPS4002S

Weight (kg)

0.62 kg

Type

Modicon X80 I/Os

Width

68

Redundancy

TRUE

Suitable for safety functions

TRUE

Depth

150

Input voltage AC 50 Hz

100…240 Volt

Output voltage AC 50 Hz

3.3…24 Volt

Input voltage AC 60 Hz

100…240 Volt

Type of voltage (input voltage)

AC/DC

Max. input current AC 60 Hz

1.1

Height

100

Power output

40

Output voltage AC 60 Hz

3.3…24 Volt

Max. output current DC

4.5

Type of output voltage

AC/DC

Max. input current AC 50 Hz

1.1
