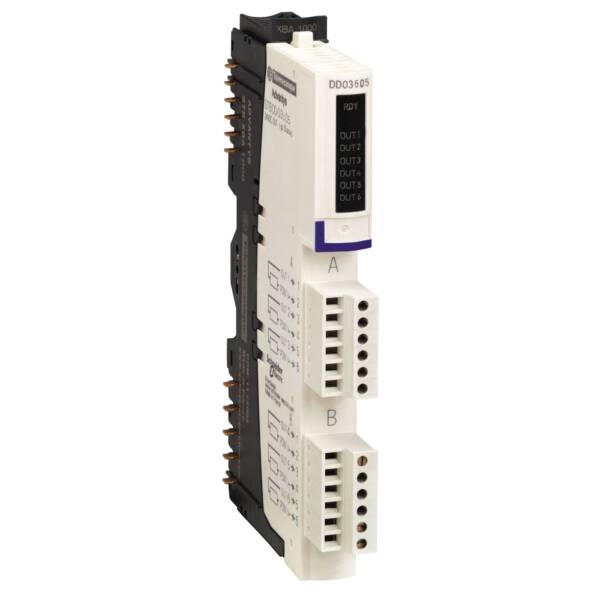

basic digital output kit STB - 24 V DC - 6 O - Schneider Electric - STBDDO3605K

basic digital output kit STB - 24 V DC - 6 O - Schneider Electric - STBDDO3605K

STBDDO3605K

basic digital output kit STB - 24 V DC - 6 O - Schneider Electric - STBDDO3605K

Automation

~~List Price £72.71 +VAT~~

Our Price £58.17 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

"This output kit is part of the Modicon STB range, an offer of modular distributed I/O." "This basic digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC)." "The kit has 6 digital outputs." 0 "Setting can be done via Advantys STB configuration software." "It weighs 0.11kg." 0 "It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications." "The kit includes STBXBA1000 base, STBDDO3605 module, STBXTS2100, 6-terminal spring clamp connector, and STBXTS1100 6-terminal screw type connector." "The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network."

Brand: Schneider Electric
Range: Advantys STB
Part No: STBDDO3605K
Weight (kg): 0.14 kg
Type: Advantys STB
Supporting protocol for SERCOS: FALSE
SIL according to IEC 61508: None
With optical interface: FALSE
Digital inputs configurable: FALSE
System accessory: TRUE
Digital outputs configurable: TRUE
Permitted voltage at output: 24 Volt
Performance level according to EN ISO 13849-1: None
Certified for UL hazardous location division 2: FALSE
Permitted voltage at input: 19.2…30 Volt
Radio standard GPRS: FALSE
Type of voltage (input voltage): AC/DC
Fieldbus connection over separate bus coupler possible: TRUE
Time delay at signal change: 0.55…0.9 Millisecond
Height: 13.9
Supporting protocol for INTERBUS-Safety: FALSE
Certified for UL hazardous location class I: FALSE
Certified for UL hazardous location class III: FALSE
Certified for UL hazardous location division 1: FALSE
Certified for UL hazardous location class II: FALSE
Width: 128.3
Supporting protocol for EtherCAT: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Explosion safety category for dust: None
Radio standard UMTS: FALSE
Depth: 70
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
Certified for UL hazardous location group C (ethylene): FALSE
Certified for UL hazardous location group A (acetylene): FALSE
Certified for UL hazardous location group B (hydrogen): FALSE
Certified for UL hazardous location group F (carbonaceous dusts): FALSE
Certified for UL hazardous location group G (non-conductive dusts): FALSE
Certified for UL hazardous location group D (propane): FALSE
Certified for UL hazardous location group E (metal dusts): FALSE
Type of electric connection: Screw connection
Supporting protocol for SafetyBUS p: FALSE
Output current: 0.25
Voltage type (supply voltage): AC/DC
Short-circuit protection, outputs available: TRUE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Type of digital output: Other
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: TRUE
Appendant operation agent (Ex ia): FALSE
Supporting protocol for TCP/IP: TRUE
Front built-in possible: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: TRUE
Appendant operation agent (Ex ib): FALSE
Degree of protection (IP): IP20
IO link master: FALSE
Type of output voltage: AC/DC
Supporting protocol for INTERBUS: TRUE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: TRUE
Supporting protocol for Modbus: TRUE
Suitable for safety functions: FALSE
Number of digital outputs: 6
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 Volt
Rack-assembly possible: TRUE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE

Datasheet for STBDDO3605K - basic digital output kit STB - 24 V DC - 6 O - Schneider Electric - STBDDO3605K
