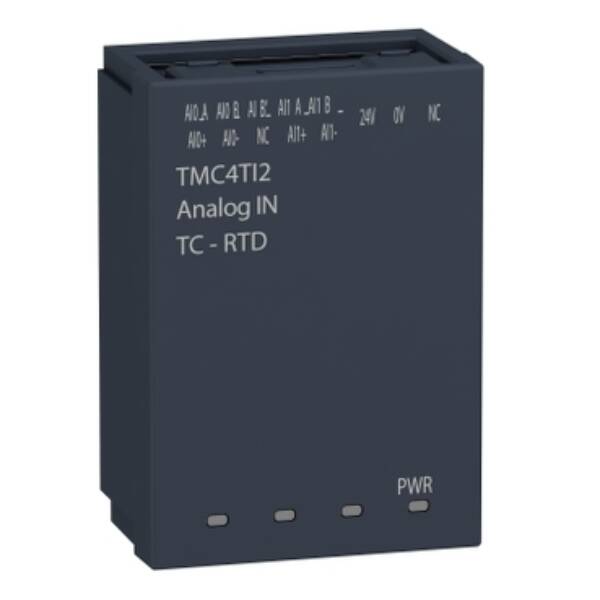

Analogue input cartridge, Modicon M241, 2 temperature inputs - Schneider Electric - TMC4TI2

Analogue input cartridge, Modicon M241, 2 temperature inputs - Schneider Electric - TMC4TI2

TMC4TI2

Analogue input cartridge, Modicon M241, 2 temperature inputs - Schneider Electric - TMC4TI2

Automation

~~List Price £163.78 +VAT~~

Our Price £131.02 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 temperature inputs with 14bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.

Brand: Schneider Electric
Range: Logic Controller - Modicon M241
Part No: TMC4TI2
Weight (kg): 0.07 kg
Type: Logic Controller - Modicon M241
Input, thermocouple: TRUE
Input signal, configurable: FALSE
Type of electric connection: Screw connection
Analogue inputs configurable: FALSE
Analogue outputs configurable: FALSE
Input, resistor: TRUE
SIL according to IEC 61508: None
Input, resistance thermometer: FALSE
Input, current: TRUE
Input voltage: TRUE
Performance level acc. EN ISO 13849-1: None
Appendant operation agent (Ex ia): FALSE
Height: 50
Appendant operation agent (Ex ib): FALSE
Category according to EN 954-1: 1
Width: 34
Output voltage: FALSE
Resolution of the analogue outputs: 12
Output signal configurable: FALSE
Suitable for safety functions: FALSE
Resolution of the analogue inputs: 14
Output, current: FALSE
Explosion safety category for dust: None
Number of analogue inputs: 2
Depth: 21
Explosion safety category for gas: None

Datasheet for TMC4TI2 - Analogue input cartridge, Modicon M241, 2 temperature inputs - Schneider Electric - TMC4TI2

Download
