LC3D09AB7
TeSys D - star delta starter - 3 x 3P (3 NO) - 9 A - 24 V AC coil - Schneider Electric - LC3D09AB7
Automation

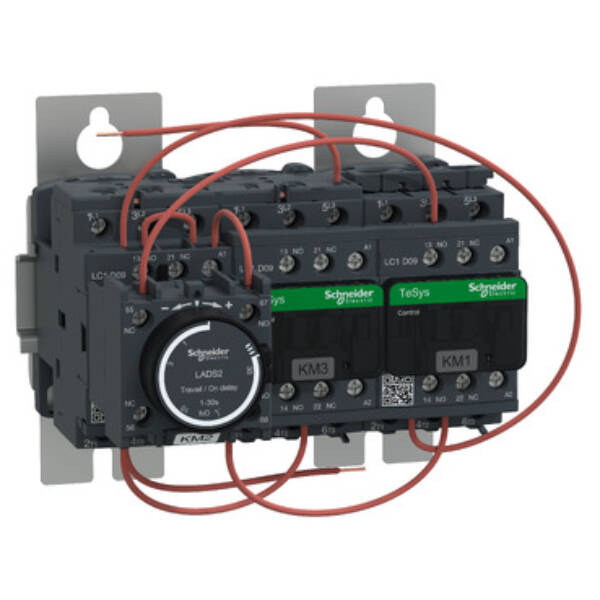

TeSys D pre-assembled star-delta starter, for motor control applications up to 7.5kW@400V in delta connection. Rail mounted starter, open version, composed of 3 contactors LC1D with 24V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (144mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).
Our Price £307.92 +VAT
SAVE 25% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys Deca contactors
- Range
- TeSys Deca contactors
- Part No
- LC3D09AB7
- Weight (kg)
- 1.58 kg
Datasheet for LC3D09AB7 - TeSys D - star delta starter - 3 x 3P (3 NO) - 9 A - 24 V AC coil - Schneider Electric - LC3D09AB7
