LC2D65ABNE

TeSys D reversing contactor - 3P - <= 440 V - 65 A AC-3 - 24...60 V AC/DC coil - Schneider Electric - LC2D65ABNE

Automation

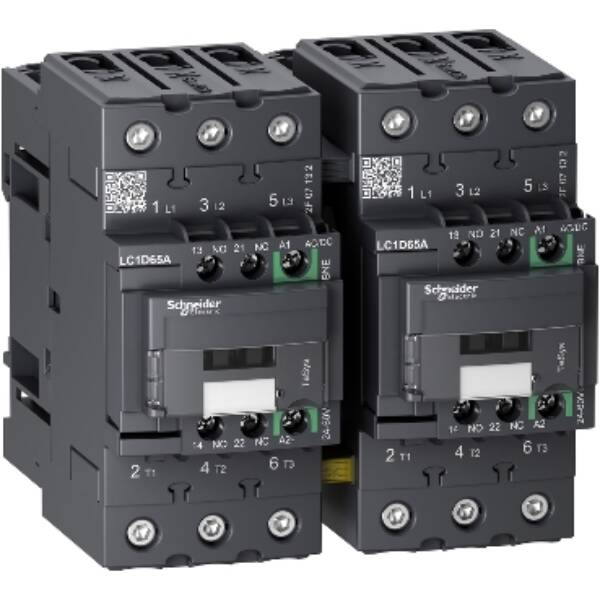

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 65A/590V AC-3 (30kW@400V). It provides low consumption 24-60V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £1,031.71 +VAT~~

Our Price £773.78 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days
