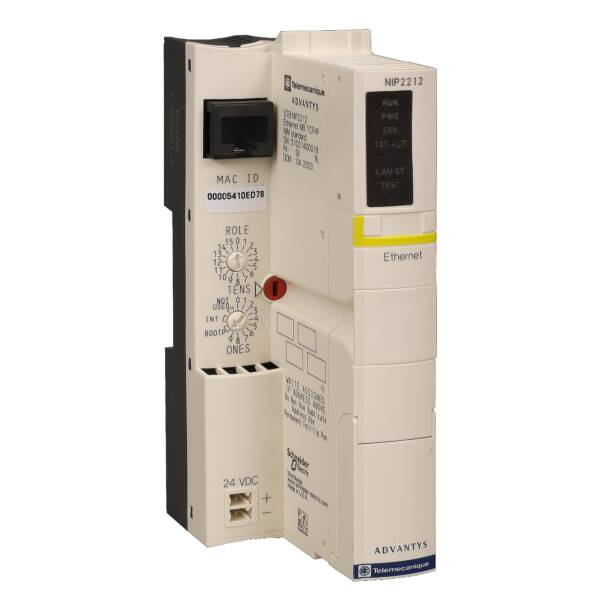

This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40.5mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, FM Class 1 Division 2, C-Tick and UL. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Brand

Schneider Electric

Range

Advantys STB

Part No

STBNIP2212

Weight (kg)

0.16 kg

Type

Advantys STB

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

System accessory

TRUE

With potential separation

TRUE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Fieldbus connection over separate bus coupler possible

TRUE

Height

40

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

128.3

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Radio standard LTE

FALSE

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

AC/DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Radio standard eGPRS

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Front built-in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

Appendant operation agent (Ex ib)

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

TRUE

Supporting protocol for Modbus

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces industrial Ethernet

1
