3”5 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out - Schneider Electric - HMISCU6B5

3”5 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out - Schneider Electric - HMISCU6B5

HMISCU6B5

3”5 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out - Schneider Electric - HMISCU6B5

Automation

~~List Price £879.91 +VAT~~

Our Price £747.92 +VAT

SAVE 16% OFF List Price

Estimated delivery between 7-10 working days

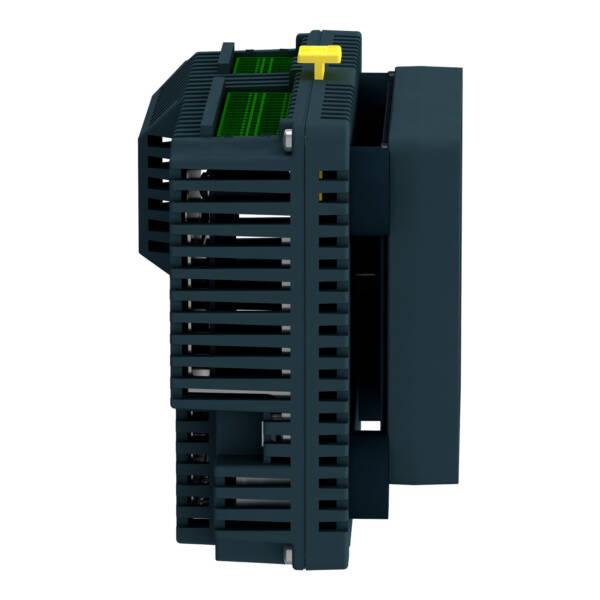

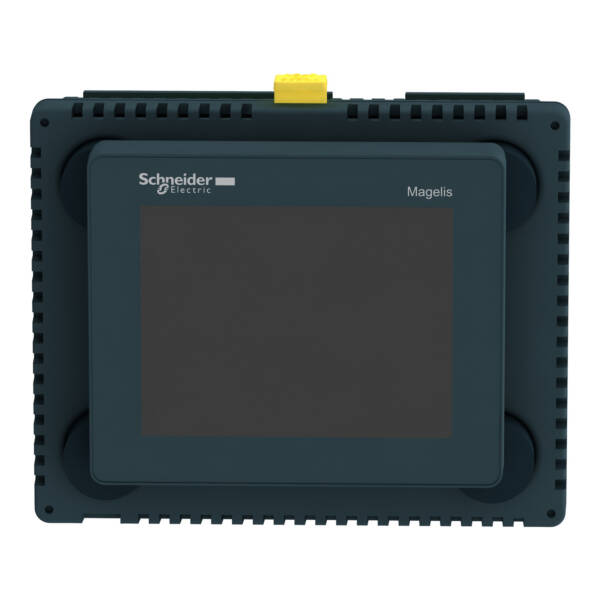

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display and 128MB EPROM. It also has 8 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.

Brand: Schneider Electric
Range: Harmony SCU
Part No: HMISCU6B5
Weight (kg): 1.17 kg
Type: Harmony SCU
With message indication: TRUE
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces USB: 2
Useful project memory/user memory: 128
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: 4X
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: TRUE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: TRUE
Supporting protocol for AS-Interface Safety at Work: FALSE
With recipes: FALSE
Degree of protection (IP), front side: IP65/IP67
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Number of online languages: 4
Additional software components, loadable: TRUE
Touch technology: Resistive touch
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: TRUE
Operation temperature: -20…60 °C
Screen diagonal: 3.5
Built-in depth: 74.95
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: TRUE
Supporting protocol for KNX: FALSE
Number of pixels, horizontal: 320
With colour display: TRUE
Supporting protocol for CAN: TRUE
Number of colours of the display: 65536
Supporting protocol for INTERBUS: FALSE
IO link master: TRUE
Rail mounting possible: TRUE
Supporting protocol for DeviceNet: FALSE
Width of the front: 128
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: TRUE
Supporting protocol for Data-Highway: FALSE
Height of the front: 102
Supply voltage DC: 24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of HW-interfaces RS-485: 1
Number of pixels, vertical: 240
Number of HW-interfaces industrial Ethernet: 1
Number of HW-interfaces RS-232: 1

Datasheet for HMISCU6B5 - 3”5 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out - Schneider Electric - HMISCU6B5

Download
