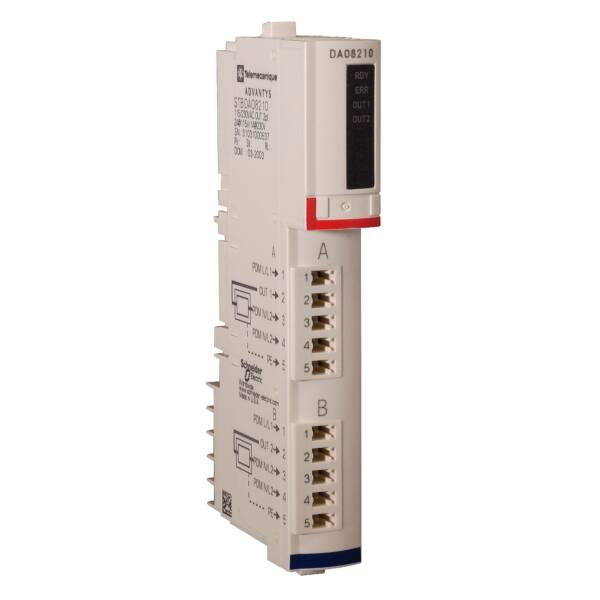

standard digital output kit - Modicon STB - 115..230 V AC - 2 O - Schneider Electric - STBDAO8210K
standard digital output kit - Modicon STB - 115..230 V AC - 2 O - Schneider Electric - STBDAO8210K

STBDAO8210K

standard digital output kit - Modicon STB - 115..230 V AC - 2 O - Schneider Electric - STBDAO8210K

Automation

List Price £90.87 +VAT

Our Price £72.70 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This product is an offer of Schneider Electric's Modicon STB distributed I/O solution range. It is a standard digital output kit for I/O base and power distribution modules. The kit consists of a base, a module, a 5-terminal spring clamp connector, and a 5-terminal screw-type connector. It supports 2 discrete outputs at an output voltage of 115 to 230 VAC. This product weighs 0.125 kg. Ideal for environment such as packaging, bottling, assembly, distribution, textile, printing, semiconductor machines. It is UL, CSA, and FM Class 1 Division 2 certified and conforms to IEC 61131-2 and IEC 60664-1 standards. This is compatible with the mounting base STBXBA2200. It is designed to be mounted on DIN rail. Modicon STB range is simple, open and flexible, meeting your needs in every stage of the product life cycle. They save you time and money by simplifying maintenance and diagnostic tasks.
Brand
Schneider Electric
Range
Advantys STB
Part No
STBDAO8210K
Weight (kg)
0.14 kg
Type
Advantys STB
Supporting protocol for SERCOS
FALSE
SIL according to IEC 61508
None
With optical interface
FALSE
Digital inputs configurable
FALSE
System accessory
TRUE
Digital outputs configurable
FALSE
Performance level acc. EN ISO 13849-1
None
Permitted voltage at input
-3…30 V
Radio standard GPRS
FALSE
Type of voltage (input voltage)
AC
Height
18.4
Time delay at signal exchange
0.925…1.35 ms
Fieldbus connection over separate bus coupler possible
TRUE
Supporting protocol for INTERBUS-Safety
FALSE
Category according to EN 954-1
1
Width
125
Supporting protocol for AS-Interface Safety at Work
FALSE
Explosion safety category for dust
None
Radio standard GSM
FALSE
Radio standard UMTS
FALSE
Depth
65.1
Explosion safety category for gas
None
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
TRUE
Supporting protocol for Foundation Fieldbus
FALSE
Input current at signal 1
2.5
Type of electric connection
Screw connection
Supporting protocol for SafetyBUS p
FALSE
Short-circuit protection, outputs available
FALSE
Voltage type of supply voltage
AC
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Type of digital output
None
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Appendant operation agent (Ex ia)
FALSE
Radio standard WLAN 802.11
FALSE
Supporting protocol for PROFIBUS
TRUE
Supply voltage AC 50 Hz
115…230 V
Front build in possible
FALSE
Supply voltage AC 60 Hz
115…230 V
Supporting protocol for TCP/IP
TRUE
Supporting protocol for KNX
FALSE
Supporting protocol for CAN
TRUE
Appendant operation agent (Ex ib)
FALSE
Degree of protection (IP)
IP20
Supporting protocol for INTERBUS
TRUE
IO link master
FALSE
Type of output voltage
AC
Rail mounting possible
FALSE
Supporting protocol for DeviceNet
TRUE
Number of digital outputs
2
Suitable for safety functions
FALSE
Supporting protocol for MODBUS
TRUE
Supporting protocol for Data-Highway
FALSE
Rack-assembly possible
FALSE
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
FALSE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
FALSE

Datasheet for STBDAO8210K - standard digital output kit - Modicon STB - 115..230 V AC - 2 O - Schneider Electric - STBDAO8210K
