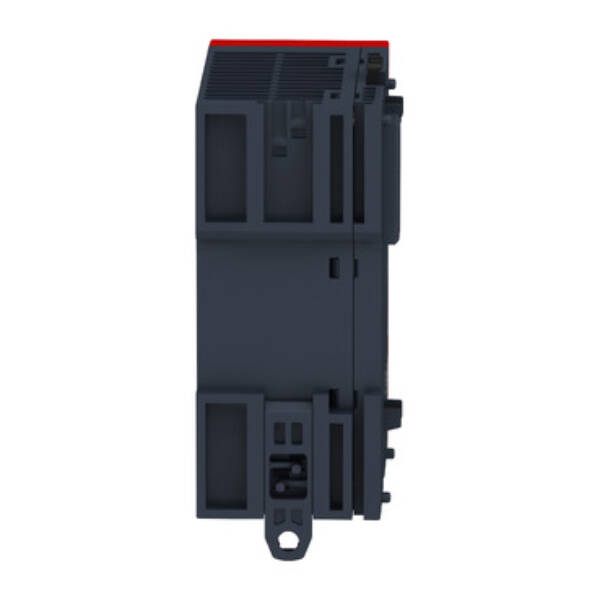

Modicon TM3 Safety module - 2 Function, Cat 3 PL d/SIL CL2 (screw) 24Vdc - Schneider Electric - TM3SAFL5R

TM3SAFL5R

Modicon TM3 Safety module - 2 Function, Cat 3 PL d/SIL CL2 (screw) 24Vdc - Schneider Electric - TM3SAFL5R

Automation

~~List Price £283.46 +VAT~~

Our Price £226.77 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This TM3 safety expansion module monitors emergency shutdown pushbuttons, limit switches and light curtains to conform to PLd / Category 3. It meets the requirements of PL d/Category 3 conforming to EN/ISO 13849-1 and SILCL 2 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It is compatible with emergency push buttons, limit switches and safety light curtains, the 3 most common safety sensors in the industry.

Brand: Schneider Electric
Range: Modicon TM3
Part No: TM3SAFL5R
Weight (kg): 0.25 kg
Type: Modicon TM3
craft\elements\db\ElementQuery: 0.04 s
craft\elements\db\ElementQuery: Screw connection
Model: Other
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: 3
craft\elements\db\ElementQuery: 2
craft\elements\db\ElementQuery: Other
craft\elements\db\ElementQuery: 1
craft\elements\db\ElementQuery: Level d
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: DC
craft\elements\db\ElementQuery: FALSE
Height: 94
craft\elements\db\ElementQuery: None
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: FALSE
Width: 43.7
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: 4
Depth: 73
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: TRUE
craft\elements\db\ElementQuery: FALSE
craft\elements\db\ElementQuery: FALSE
Rated control supply voltage Us at DC: 24 V
craft\elements\db\ElementQuery: FALSE

Datasheet for TM3SAFL5R - Modicon TM3 Safety module - 2 Function, Cat 3 PL d/SIL CL2 (screw) 24Vdc - Schneider Electric - TM3SAFL5R
