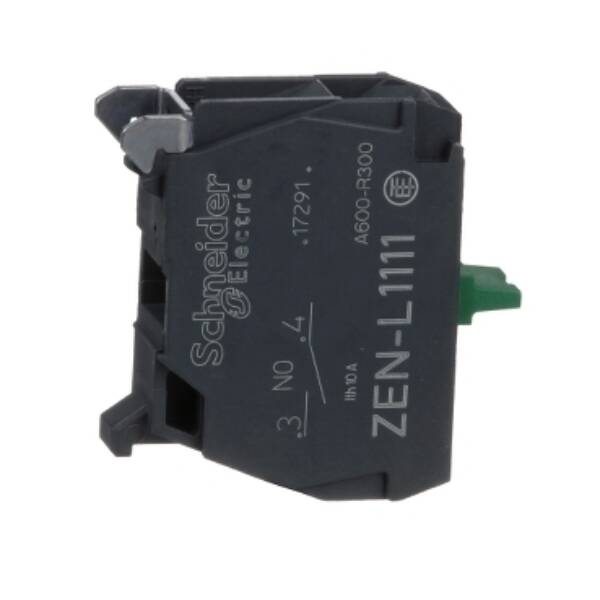

This Harmony XAL, single contact block uses screw-clamp terminals and has 1 x NO contact. It is compatible with Harmony XB5, 22mm control and signaling units and XAPS control stations. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches and XAPS control station and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. 1 million cycle high endurance allows less maintenance and damage in your installation. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Brand

Schneider Electric

Range

Harmony XALD, XALK

Part No

ZENL1111

Weight (kg)

0.01 kg

Type

Harmony XALD, XALK

Number of contacts as normally open contact

1

Model

Integrable

Type of electric connection

Screw connection

Rated operation current Ie at AC-15, 230 V

3

Mounting method

Floor fastening

Lamp holder

None
