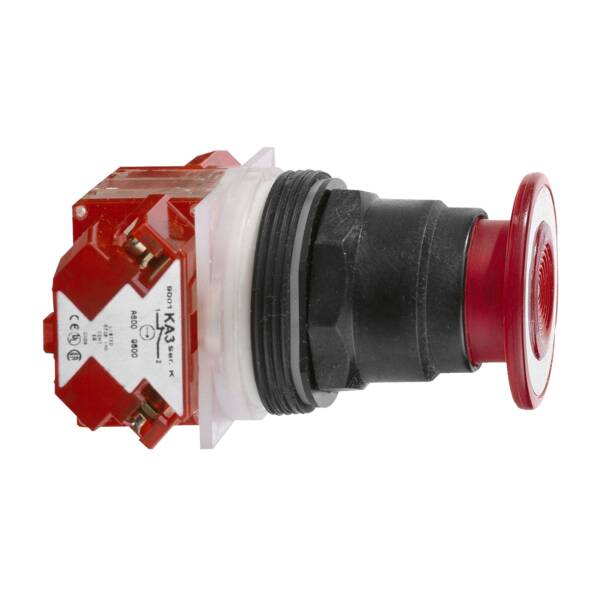

This red push button is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a red mushroom diameter 41mm, unmarked Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 2 maintained positions push pull operator and it is supplied with 1 x NC contact and screw clamp terminals. It weighs 159g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Brand

Schneider Electric

Range

Harmony 9001 SK

Part No

9001SKR9RH6

Weight (kg)

0.08 kg

Type

Harmony 9001 SK

Degree of protection (IP)

IP66

With lighting

FALSE

Number of contacts as normally closed contact

1

Degree of protection (NEMA)

Other

Connection type auxiliary circuit

Screw connection

Hole diameter

31

Supply voltage lamp

600

Mounting method

Surface mounting

Diameter cap

41

Unlocking method

Pull-release
