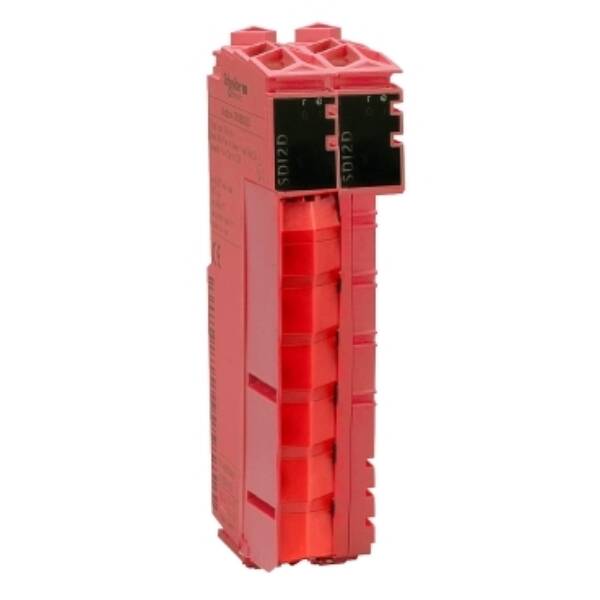

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This safety DC discrete input module provides 4 discrete inputs with sink discrete input logic, 24V DC. There is an isolation between channel and bus at 500V AC. This safety module, associated with TM5CSLC safety logic controller provides distributed safety solutions on Sercos bus up to SIL 3, Cat. 4, PL e, SIL CL3. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. Its housing colour is red. It weighs 0.025kg. It measure 75mm deep, 25mm wide, 99mm high. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM5CSLC safety logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SDI4DFS

Weight (kg)

0.05 kg

Type

Modicon TM5 IP20 modular I/O system

Input current at signal 1

3.45

Type of electric connection

Other

Voltage type (supply voltage)

DC

Short-circuit protection, outputs available

TRUE

SIL according to IEC 61508

3

Appendant operation agent (Ex ia)

FALSE

Performance level according to EN ISO 13849-1

Level e

Permitted voltage at input

20.4…28.8 Volt

Type of voltage (input voltage)

DC

Time delay at signal change

150 Millisecond

Height

30

Appendant operation agent (Ex ib)

FALSE

Width

60

Suitable for safety functions

TRUE

Redundancy

FALSE

Number of digital inputs

4

Explosion safety category for dust

None

Supply voltage DC

24 Volt

Depth

105

Explosion safety category for gas

None
