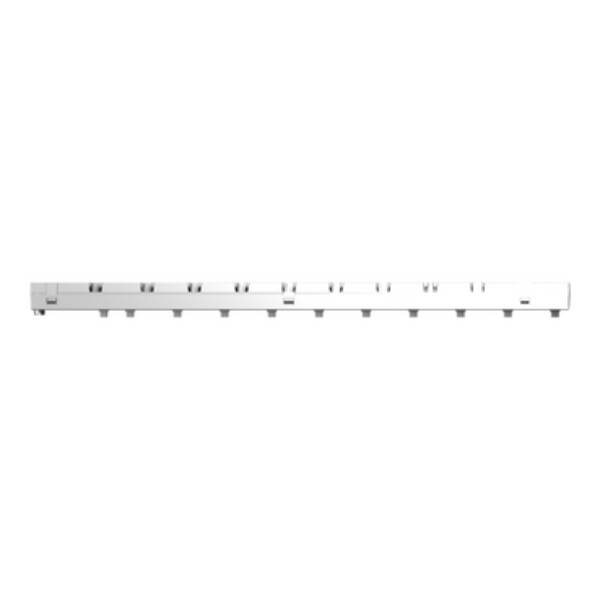

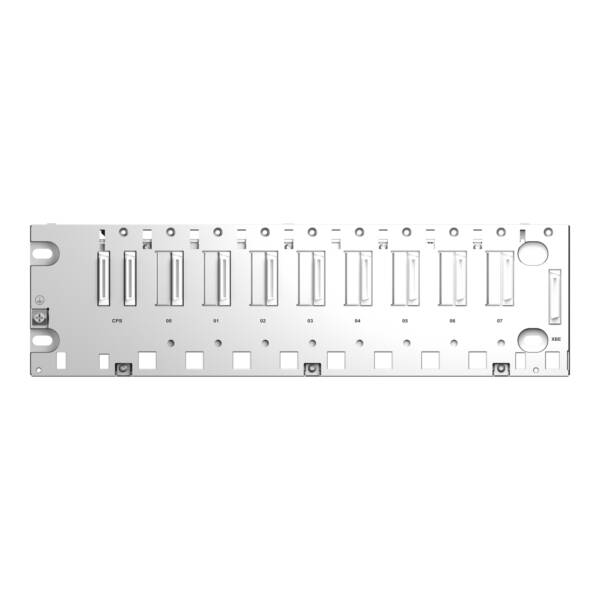

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of M340 processor. This X-bus backplane provides 8 bus X slots. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is an Ethernet backplane rack with a power of 2W. It is furnished with 1 connector (XBE) expansion module for electrical connection. It is an IP20 rated product. It weighs 0.95kg. It is suitable for severe environments, medium to large process applications. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply and BMXP34 processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXXBP0800H

Weight (kg)

1.01 kg

Type

Modicon X80 I/Os

SIL according to IEC 61508

None

Appendant operation agent (Ex ia)

TRUE

Performance level according to EN ISO 13849-1

None

Front built-in possible

TRUE

Number of slots

8

Height

103.7

Appendant operation agent (Ex ib)

FALSE

Width

372.8

Rail mounting possible

TRUE

Redundancy

FALSE

Suitable for safety functions

FALSE

With integrated power supply

TRUE

Explosion safety category for dust

Other

Rack-assembly possible

TRUE

Depth

19

Explosion safety category for gas

Other

Wall mounting/direct mounting

TRUE
