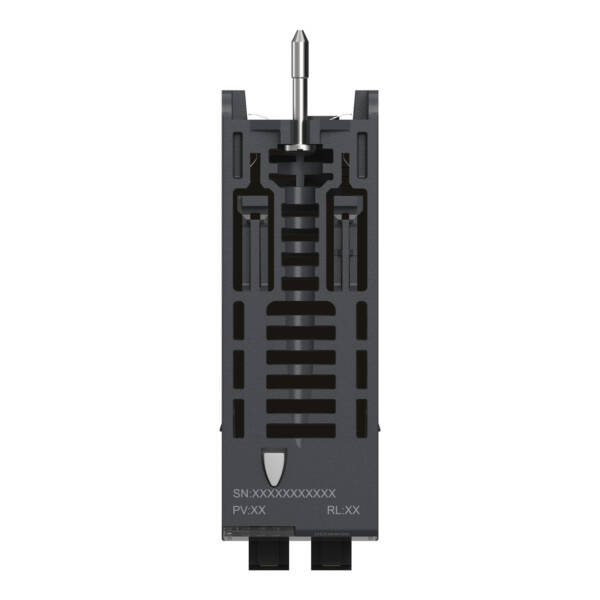

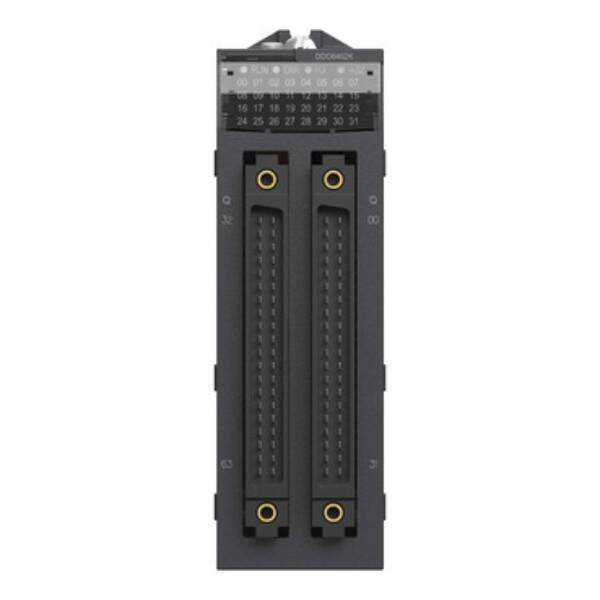

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 64 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a typical current consumption of 79mA at 3.3V DC and an output current of 0.5A. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 159924 hours of MTBF. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDDO6402K

Weight (kg)

0.20 kg

Type

Modicon X80 I/Os

Input current at signal 1

0.65

Output, current

0.1

Type of electric connection

Plug-in connection

Voltage type of supply voltage

DC

Short-circuit protection, outputs available

FALSE

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

Transistor

Digital outputs configurable

TRUE

Performance level acc. EN ISO 13849-1

None

Permitted voltage at output

19…30 V

Appendant operation agent (Ex ia)

FALSE

Permitted voltage at input

19…30 V

Type of voltage (input voltage)

DC

Height

100

Time delay at signal exchange

1.2 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Type of output voltage

DC

Width

33

Number of digital outputs

64

Redundancy

FALSE

Suitable for safety functions

FALSE

Supply voltage DC

24 V

Explosion safety category for dust

None

Depth

150

Explosion safety category for gas

None
