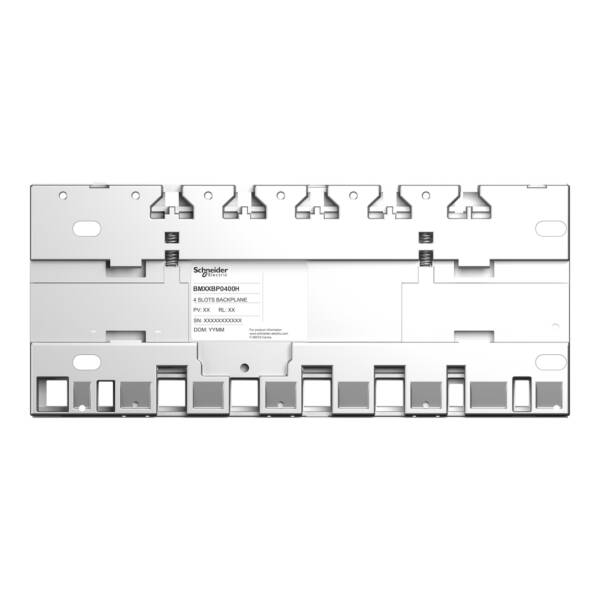

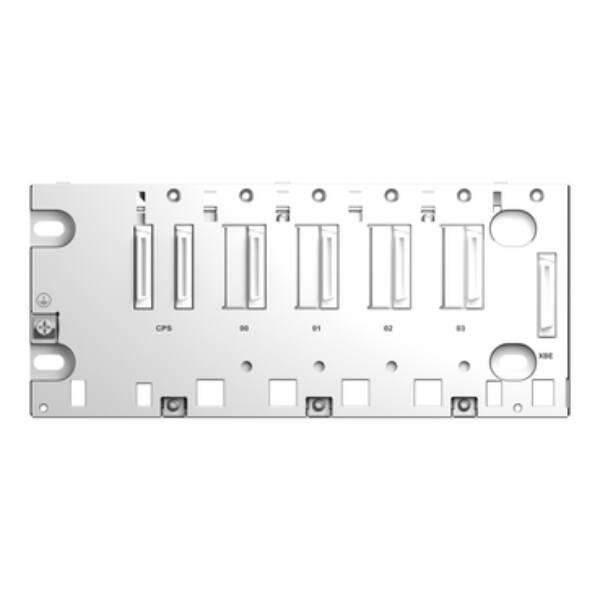

"This backplane is part of the Modicon X80 range, a common platform of modules for Modicon M580 and Modicon M340 Programmable Automation Controllers (PAC)." "This X-bus backplane is an accessory of programmable automation controllers." "This X-bus backplane is composed of 4 X-bus slots for X-bus modules only and has a power consumption of 1.12W." "This backplane supports a large choice of modules and can be extended thanks to its XBE slot. This ruggedized product can be used in more severe environments and operate in an extended temperature range, from -25°C to +70°C." "This backplane has a current of 340mA at 3.3V DC. It is furnished with 1 connector (XBE) for expansion module." "It is an IP20 rated product." "The backplane has a weigh of 0.630kg." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards." "This backplane is compatible with X80 power supply, M340 or M580 processor, and Modicon X80 modules." "Modicon X80 range offers common compatible modules that reduce maintenance and training costs with the same spare parts in stock and unique training for different Programmable Automation Controllers (PAC)." "Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXXBP0400H

Weight (kg)

0.69 kg

Type

Modicon X80 I/Os

SIL according to IEC 61508

None

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Front build in possible

TRUE

Number of slots

4

Type of voltage (input voltage)

AC/DC

Height

103.7

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

242.4

Rail mounting possible

TRUE

Redundancy

FALSE

Suitable for safety functions

FALSE

With integrated power supply

TRUE

Explosion safety category for dust

Other

Rack-assembly possible

TRUE

Depth

19

Explosion safety category for gas

Other

Wall mounting/direct mounting

TRUE
