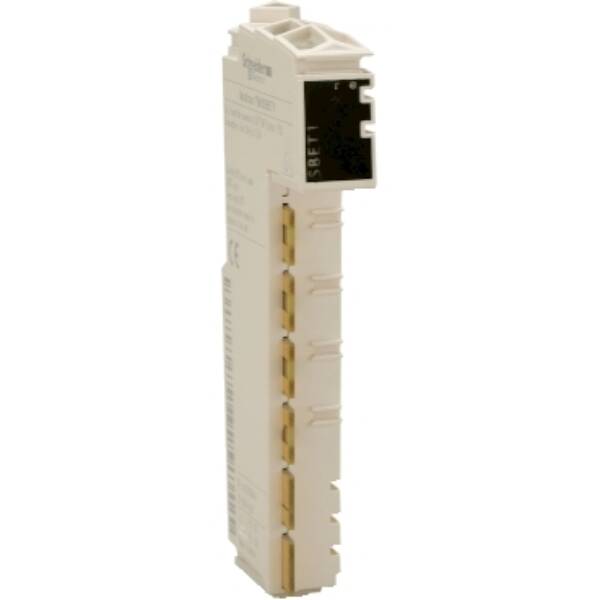

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The remote transmitter module provides communication between IP20 remote I/O and distribute power. It is a remote transmitter module with a current consumption of 25mA at 24V DC input/output, 100mA at 5V DC bus and a maximum power dissipation of 1.1W. This product is part of a flexible and scalable I/O configuration for automation solutions. The bus length is 2500m and maximum cable distance between devices is 100m. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Brand

Schneider Electric

Range

Modicon TM5 IP20 modular I/O system

Part No

TM5SBET1

Weight (kg)

0.04 kg

Type

Modicon TM5 IP20 modular I/O system

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

SIL according to IEC 61508

None

With optical interface

FALSE

Performance level acc. EN ISO 13849-1

None

With potential separation

FALSE

Radio standard GPRS

FALSE

Height

99

Supporting protocol for INTERBUS-Safety

FALSE

Width

12.5

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

None

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

75

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for PROFIBUS

FALSE

Type of data transmission

Other

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for MODBUS

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Data-Highway

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE
