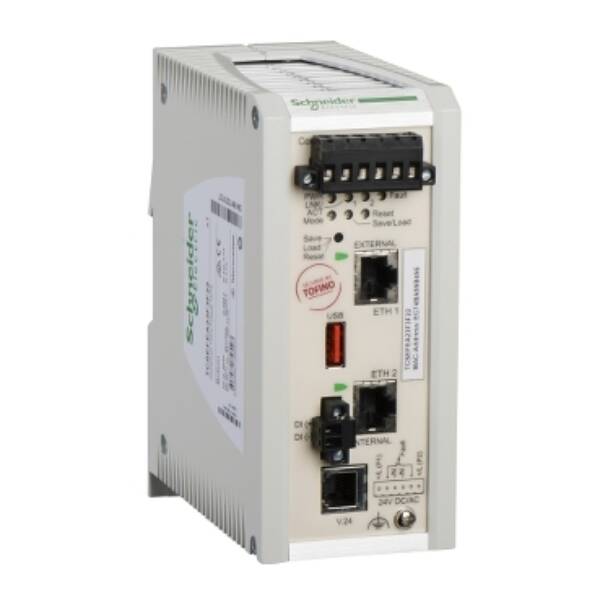

"This product is part of the Modicon Networking range, an offer of Industrial Firewall/Router." "This device comes with Ethernet TCP/IP protocol." "It comes with 1 copper cable transmission port and 1 port for multi-mode fiber optic." "It provides secure connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features." "This product works at a power consumption of 8.3W and a rated voltage from 12V to 24V DC." "It is furnished with 6-way removable connector (power supply) for electrical connection" "Its dimensions are 60mm (width) x 145mm (height) x 125mm (depth) and weighs 0.61 kg." "It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels." "It is CE, UL, RCM, DNV certified and conforms to UL 508, EN/IEC 61131 and EN/IEC 60950 standards." "It is designed to be mounted on a 35mm symmetrical DIN rail." "The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network."

Brand

Schneider Electric

Range

Modicon Networking

Part No

TCSEFEC23FCF21

Weight (kg)

1.04 kg

Type

Modicon Switch

xDSL

FALSE

Firewall

TRUE

UMTS

FALSE

Number of ports 10/100 Mbps LAN

2

Analogue

FALSE

VPN

TRUE

USB

FALSE

Mounting method

DIN rail (top hat rail)

Long-Term Evolution (LTE)

FALSE

ISDN

FALSE

Radio protocol

Other

Ethernet

TRUE

Empty chassis

FALSE

Frequency band

Other

Degree of protection (IP)

IP20
