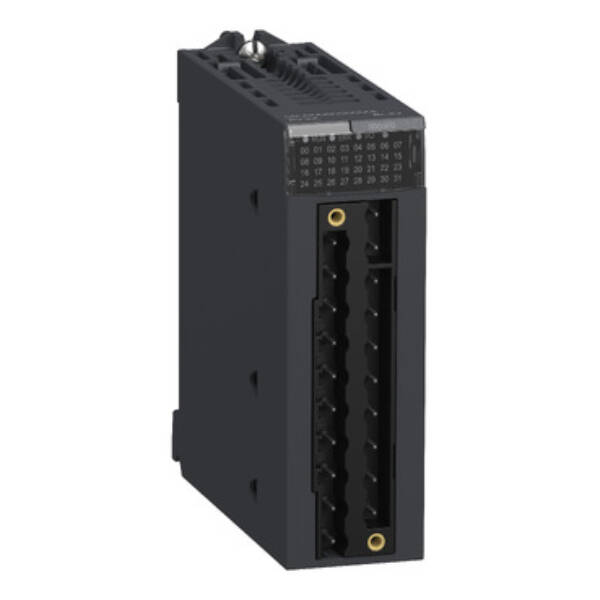

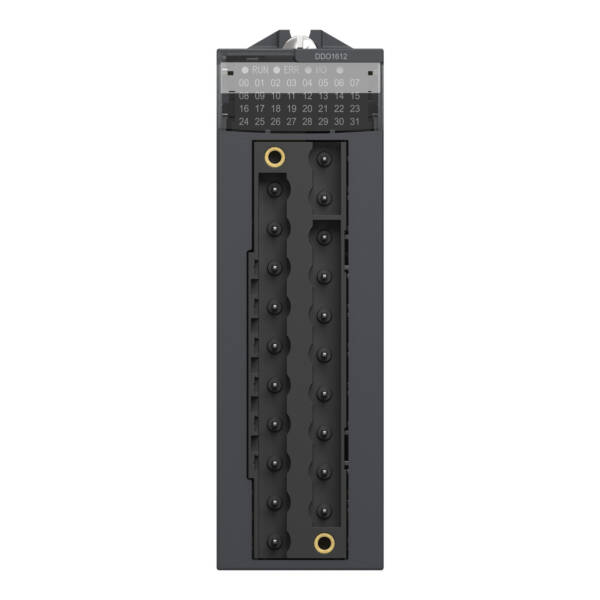

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 2.26W, a typical current consumption 79mA at 3.3V DC and 0.6A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It is an IP20 rated product. It weighs 0.12kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXDDO1612

Weight (kg)

0.15 kg

Type

Modicon X80 I/Os

Input current at signal 1

0.65

Output, current

0.5

Type of electric connection

Plug-in connection

Short-circuit protection, outputs available

TRUE

Voltage type of supply voltage

DC

SIL according to IEC 61508

None

Digital inputs configurable

FALSE

Type of digital output

Transistor

Digital outputs configurable

TRUE

Performance level acc. EN ISO 13849-1

None

Permitted voltage at output

24 V

Appendant operation agent (Ex ia)

FALSE

Permitted voltage at input

24 V

Type of voltage (input voltage)

DC

Height

100

Time delay at signal exchange

1.2 ms

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Type of output voltage

DC

Width

33

Redundancy

FALSE

Suitable for safety functions

FALSE

Number of digital outputs

16

Explosion safety category for dust

None

Supply voltage DC

24 V

Depth

150

Explosion safety category for gas

None
