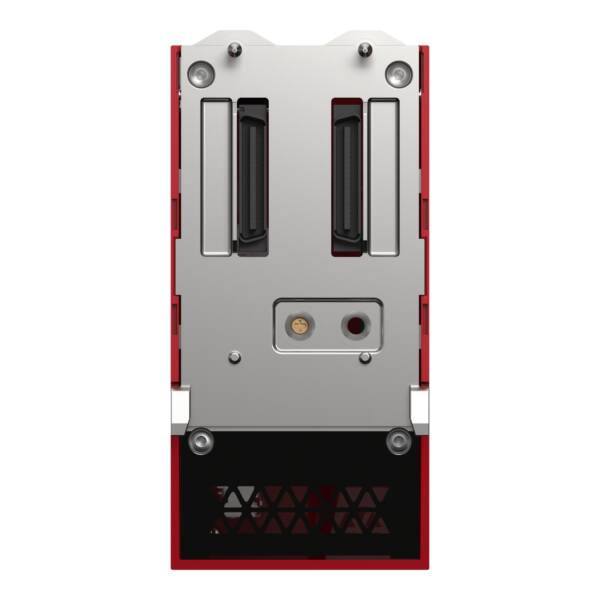

Redundant HSBY processor module M580 Safety SIL3 - Level 2 - Schneider Electric - BMEH582040S

Redundant HSBY processor module M580 Safety SIL3 - Level 2 - Schneider Electric - BMEH582040S

BMEH582040S

Redundant HSBY processor module M580 Safety SIL3 - Level 2 - Schneider Electric - BMEH582040S

Automation

~~List Price £6,393.26 +VAT~~

Our Price £5,114.61 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This processor module is part of the Modicon M580 range, an offer of PACs and safety PLCs with built-in Ethernet. This redundant processor is equipped with ethernet TCP/IP and mini B USB integrated connection ports. It offers 7,63,800 hours of MTBF. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 and TUV. It is suitable for rack mount. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.

Brand: Schneider Electric
Range: Modicon M580 - ePac
Part No: BMEH582040S
Weight (kg): 0.89 kg
Type: Modicon M580 - ePac
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces USB: 1
SIL according to IEC 61508: None
With optical interface: FALSE
Additional program memory possible: TRUE
System accessory: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 134.6
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 64.6
Redundancy: TRUE
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: ATEX dust-ex-protection, Cat. 3D
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 130.3
Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
With display: FALSE
Supporting protocol for SafetyBUS p: FALSE
Processing time (1K, binary operation): 0.1
Model: Modular
Voltage type of supply voltage: DC
Type of memory: RAM
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Memory size: 8192
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: TRUE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Appendant operation agent (Ex ia): FALSE
Supply voltage AC 50 Hz: 0 V
Supply voltage AC 60 Hz: 0 V
Supporting protocol for TCP/IP: TRUE
Front build in possible: FALSE
Supporting protocol for KNX: FALSE
Appendant operation agent (Ex ib): FALSE
Supporting protocol for CAN: FALSE
Supporting protocol for INTERBUS: FALSE
IO link master: TRUE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: TRUE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Rack-assembly possible: TRUE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of HW-interfaces industrial Ethernet: 4

Datasheet for BMEH582040S - Redundant HSBY processor module M580 Safety SIL3 - Level 2 - Schneider Electric - BMEH582040S

Download
