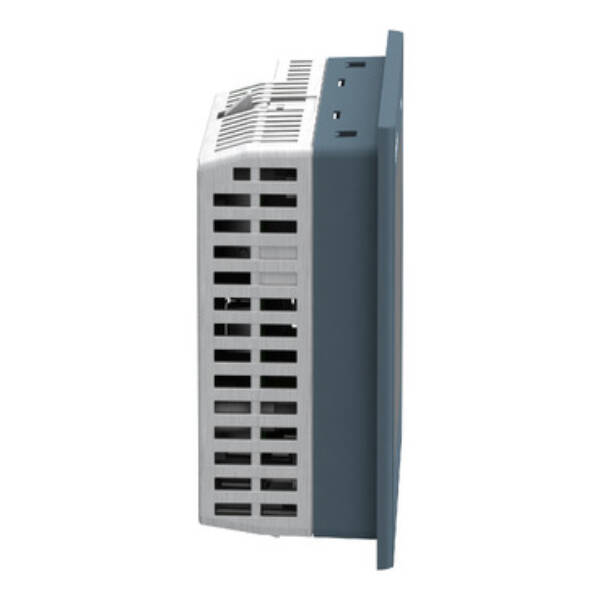

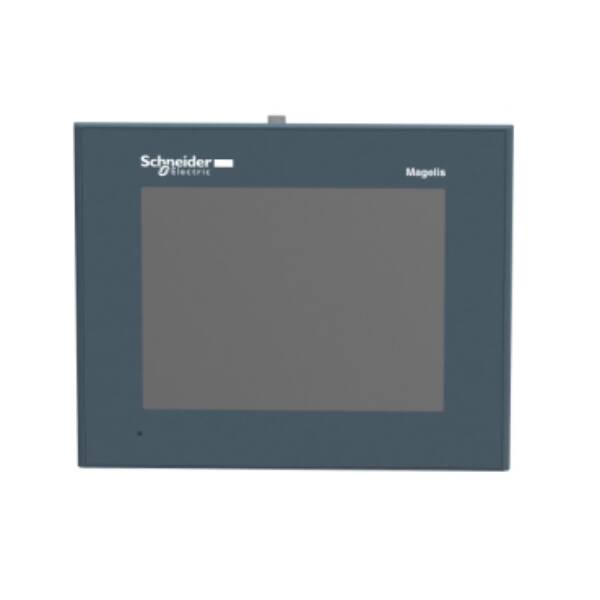

advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 64 MB - Schneider Electric - HMIGTO2300
advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 64 MB - Schneider Electric - HMIGTO2300

HMIGTO2300

advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 64 MB - Schneider Electric - HMIGTO2300

Automation

List Price £864.51 +VAT

Our Price £734.83 +VAT

SAVE 16% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display, 320 x 240 pixels (QVGA) and 64MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C port and 1 RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
Brand
Schneider Electric
Range
Harmony HMI GTO
Part No
HMIGTO2300
Weight (kg)
1.06 kg
Type
Harmony HMI GTO
With message indication
TRUE
Supporting protocol for SERCOS
FALSE
Number of function buttons, programmable
6
Number of HW-interfaces other
1
Number of HW-interfaces USB
2
Useful project memory/user memory
64000
Number of grey-scales/blue-scales of display
16
With numeric keyboard
FALSE
With alpha numeric keyboard
FALSE
Degree of protection (NEMA), front side
4X
Radio standard GPRS
FALSE
With message system (incl. buffer and confirmation)
TRUE
Process value representation (output) possible
TRUE
Supporting protocol for INTERBUS-Safety
FALSE
Type of display
TFT
With printer output
TRUE
Process default value (input) possible
TRUE
Supporting protocol for AS-Interface Safety at Work
FALSE
With recipes
TRUE
Degree of protection (IP), front side
IP65/IP67
Radio standard GSM
FALSE
Radio standard UMTS
FALSE
Additional software components, loadable
TRUE
Touch technology
Resistive touch
Supporting protocol for DeviceNet Safety
FALSE
Supporting protocol for EtherNet/IP
TRUE
Supporting protocol for Foundation Fieldbus
FALSE
With SW interfaces
TRUE
Operation temperature
0…50 °C
Screen diagonal
3.5
Built-in depth
42
Supporting protocol for SafetyBUS p
FALSE
Voltage type of supply voltage
AC/DC
Supporting protocol for PROFINET CBA
FALSE
Supporting protocol for PROFINET IO
FALSE
Supporting protocol for PROFIsafe
FALSE
Supporting protocol for ASI
FALSE
Radio standard Bluetooth
FALSE
Radio standard WLAN 802.11
FALSE
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
Supporting protocol for KNX
FALSE
Number of pixels, horizontal
320
With colour display
TRUE
Supporting protocol for CAN
FALSE
Number of colours of the display
65536
Supporting protocol for INTERBUS
FALSE
IO link master
TRUE
Supporting protocol for DeviceNet
FALSE
Rail mounting possible
FALSE
Supporting protocol for MODBUS
TRUE
Width of the front
132
Suitable for safety functions
FALSE
Height of the front
106
Supporting protocol for Data-Highway
FALSE
Supply voltage DC
24 V
Supporting protocol for LON
FALSE
Supporting protocol for other bus systems
TRUE
Supporting protocol for SUCONET
FALSE
Wall mounting/direct mounting
TRUE
Number of HW-interfaces RS-485
1
Number of pixels, vertical
240
Number of HW-interfaces RS-232
1
