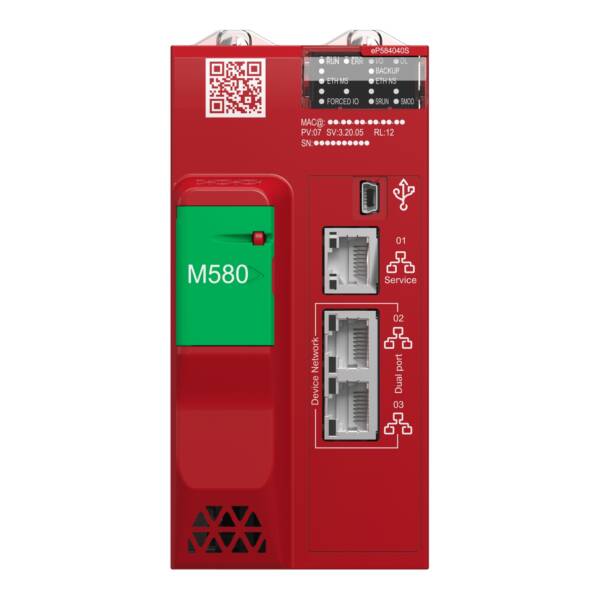

This processor module is part of the Modicon M580 range, an offer of PACs and safety PLCs with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 144 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 4096 discrete, 1024 analog local I/O channels and 64 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network and USB type mini B for integrated connections. It has an integrated RAM of 16MB for program, 2048kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. Modicon M580 improves reliability and sustainability, as well as productivity with high performance and increases operating profitability due to efficient access to data. Modicon M580 ePAC is the controller which can help hybrid manufacturers achieve better, measurable and earlier ROI.

Brand

Schneider Electric

Range

Modicon M580 - ePac

Part No

BMEP584040S

Weight (kg)

0.88 kg

Type

Modicon M580 - ePac

Supporting protocol for IEC 60870

FALSE

Supporting protocol for DNP3

FALSE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

64

Number of HW-interfaces USB

1

SIL according to IEC 61508

None

With optical interface

FALSE

Additional program memory possible

TRUE

System accessory

FALSE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Height

134.6

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

64.6

Supporting protocol for EtherCAT

FALSE

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

ATEX dust-ex-protection, Cat. 3D

Radio standard UMTS

FALSE

Depth

130.3

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

With display

TRUE

Supporting protocol for SafetyBUS p

FALSE

Processing time (1K, binary operation)

0.01

Model

Modular

Voltage type (supply voltage)

AC/DC

Type of memory

NVRAM

Long-Term Evolution (LTE)

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Memory size

18000

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

TRUE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for TCP/IP

TRUE

Front built-in possible

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for IEC 61850 Ethernet

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for Modbus

FALSE

Suitable for safety functions

TRUE

Number of digital outputs

4096

Supporting protocol for Data-Highway

FALSE

Number of digital inputs

4096

Number of analogue outputs

1024

Supply voltage DC

24 Volt

Rack-assembly possible

TRUE

Number of analogue inputs

1024

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces industrial Ethernet

3
