Home
Products*
Automation
PLC, PAC and Dedicated Controllers
TMAT4CSET
TMAT4CSET
connector set for M241 - IO - Schneider Electric - TMAT4CSET
Automation
List Price £51.87
+VAT
Our Price £41.50
+VAT
SAVE 20% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads

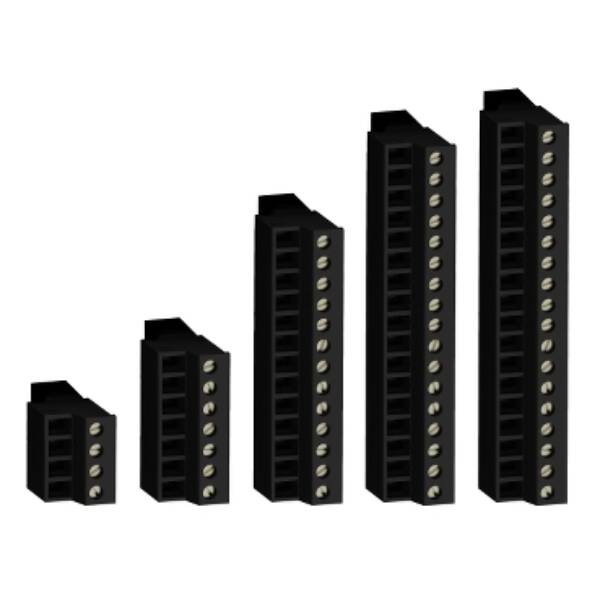

connector set for M241 - IO This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This connector set is dedicated to Modicon M241 logic controllers. It is composed of 8 removable connectors with screw terminals to connect to the serial line, to the I/O and to the CANopen bus. It weighs 0.127kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. The pack of this set contains 1 terminal block connector and 7 Molex connectors.
Brand
Schneider Electric
Range
Logic Controller - Modicon M241
Part No
TMAT4CSET
Weight (kg)
0.14 kg
Type
Logic Controller - Modicon M241
Rated voltage
24
Type of electric connection
Screw connection
Model
Other
Width/grid dimension
20
Connectable conductor cross section solid-core
2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
2.5 mm²
Connectable conductor cross section multi-wired
2.5 mm²
Total number of poles (without ground contact)
2
Number of poles
2
Tackable
FALSE
Connectable conductor cross section fine-strand without cable end sleeve
2.5 mm²
Rated current In
5
Datasheet for TMAT4CSET - connector set for M241 - IO - Schneider Electric - TMAT4CSET
Download
