BMXCPS3500H
BMXCPS3500H

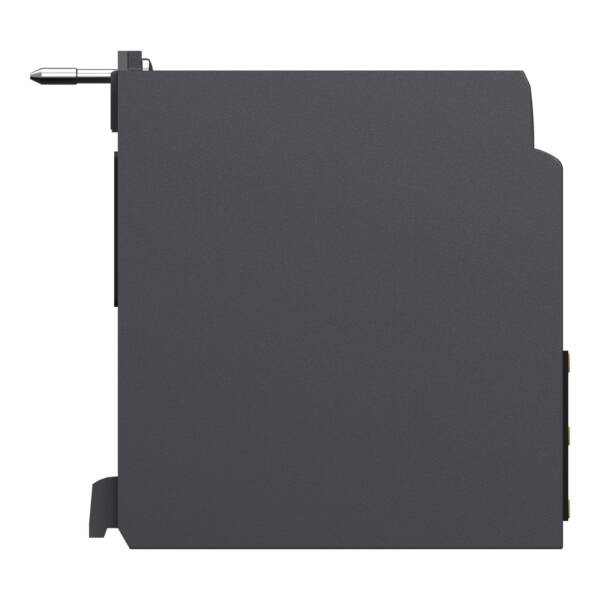

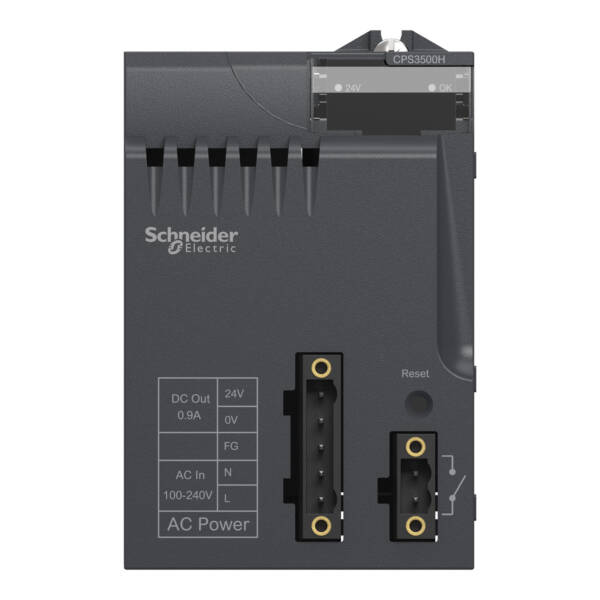

power supply module X80 - 100..240 V AC - for severe environments - Schneider Electric - BMXCPS3500H
Automation
List Price £604.24
+VAT
Our Price £483.39
+VAT
SAVE 21% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Brand
Schneider Electric
Range
Modicon X80 I/Os
Part No
BMXCPS3500H
Weight (kg)
0.54 kg
Type
Modicon X80 I/Os
Width
68
Redundancy
FALSE
Suitable for safety functions
FALSE
Depth
99
Input voltage AC 50 Hz
100…240 Volt
Output voltage AC 50 Hz
3.3…24 Volt
Input voltage AC 60 Hz
100…240 Volt
Max. input current AC 60 Hz
1.04
Type of voltage (input voltage)
AC/DC
Height
104
Power output
36
Output voltage AC 60 Hz
3.3…24 Volt
Type of output voltage
AC/DC
Max. output current DC
4.5
Max. input current AC 50 Hz
1.04
Datasheet for BMXCPS3500H - power supply module X80 - 100..240 V AC - for severe environments - Schneider Electric - BMXCPS3500H
Download
