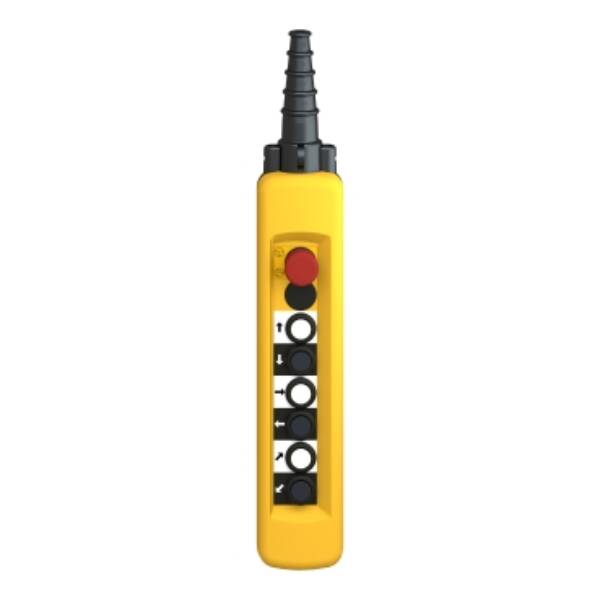

This Harmony XAC, is a complete ready to use pendant station for control of single-speed motors. It has 6 standard push buttons mechanically interlocked between pairs and one emergency stop diameter 40mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Designed for mechanical handling, these highly robust pendant control stations are not only simple and intuitive, but also very comfortable for the operator to use. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides a yellow polypropylène double insulated enclosure. This control station is ideal for hoists, travelling cranes applications. This robust pendant control station complies with the safety requirements of IEC standards.

Brand

Schneider Electric

Range

Harmony-XAC

Part No

XACA6713

Weight (kg)

1.14 kg

Type

Harmony-XAC

Width

80

Type of executable motions

Transport - hoist

Material housing

Plastic

Suitable for emergency stop

TRUE

Depth

107

Number of speeds

1

Material quality housing

Other

Height

500

Rated operation current Ie at AC-15, 600 V

1.2

Colour housing cover

Yellow

Degree of protection (IP)

IP65

Number of command positions

6

Degree of protection (NEMA)

13
