LUCL05BL

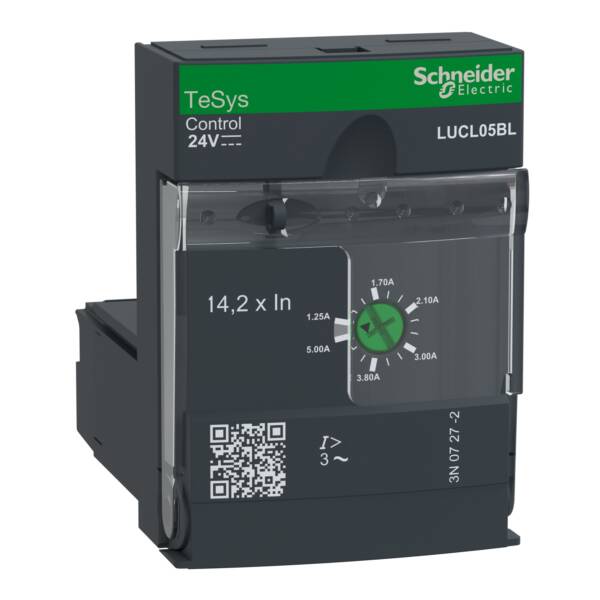

Standard control unit, TeSys U, 1.25-5A, 3P motors, magnetic protection, coil 24V DC - Schneider Electric - LUCL05BL

Automation

TeSys U magnetic control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides short circuit protection to motors with a rated current In 1.25-5A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

~~List Price £100.57 +VAT~~

Our Price £75.43 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days
