TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 24 V AC coil - Schneider Electric - LC3D80B7A64
TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 24 V AC coil - Schneider Electric - LC3D80B7A64

LC3D80B7A64

TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 24 V AC coil - Schneider Electric - LC3D80B7A64

Control

List Price £1,743.61 +VAT

Our Price £1,307.71 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

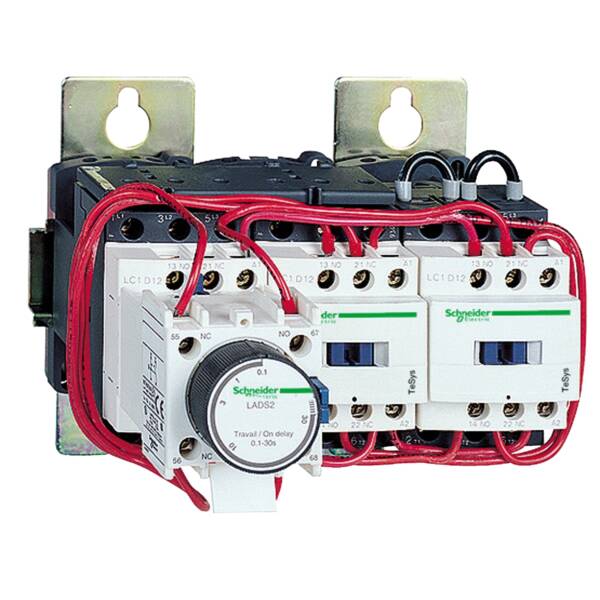

TeSys Deca pre-assembled star-delta starter, for motor control applications up to 75kW@400V in delta connection. It is mounted on plate without isolating device, composed of 3 contactors and 1 time delay auxiliary block. It is provided with a 24V 50/60Hz AC coil, and mechanical interlock, connection by screw clamp terminals. Maximum operating rate is 30 starts/hour and maximum starting time is 30 sec. Dimension is 311mm x 143mm x 183mm (WxHxD). "Green Premium compliant (RoHS/REACh)."
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC3D80B7A64
Weight (kg)
6.70 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-3, 400 V
75
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Voltage type (operating voltage)
AC
Height
143
Rated operation current Ie at AC-3, 400 V
80
Voltage type for actuating
AC
Degree of protection (IP)
IP20
Width
311
Rated control supply voltage AC 50 Hz
24 Volt
Rated control supply voltage AC 60 Hz
24 Volt
Rail mounting possible
FALSE
Number of normally open contacts as main contact
3
Number of auxiliary contacts as normally closed contact
1
Operating voltage AC 50 Hz
440 Volt
Depth
183
Operating voltage AC 60 Hz
440 Volt
Function
Star-delta contactor
Degree of protection (NEMA)
Other

Datasheet for LC3D80B7A64 - TeSys D - star delta starter - 3 x 3P (3 NO) - 80 A - 24 V AC coil - Schneider Electric - LC3D80B7A64
