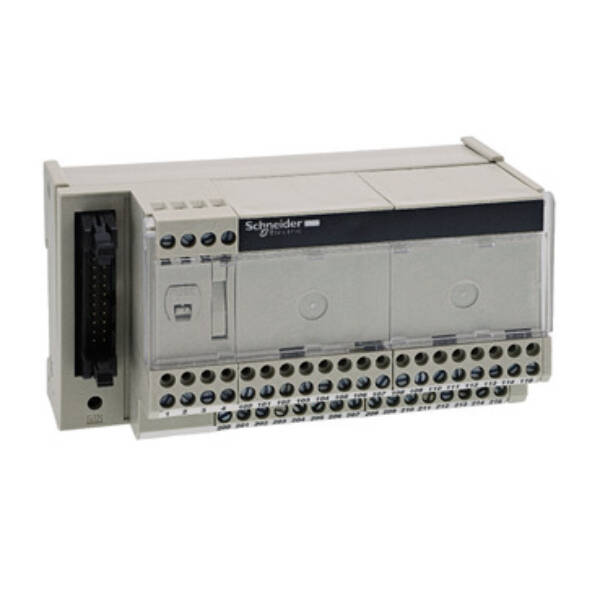

"This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system." "This is a passive connection sub-base for 16 channels as digital I/O and all the commons, with 2 terminals per channel." "Its control circuit voltage is 24VDC." "It provides a digital I/O control function." "It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers." "The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver." "It is a universal sub-base with IP20 degree of protection. It weighs 0.300kg." 0 "It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts." "This product is certified by DNV, CSA, UL, GL and EAC." "It is suitable for use with Modicon Quantum and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules." "It is delivered in 1 package (PCE type)." "Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit)." "Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment."

Brand

Schneider Electric

Range

Advantys Telefast ABE 7

Part No

ABE7H16R20

Weight (kg)

0.30 kg

Type

Advantys Telefast ABE 7

Number of sensor-/actuator-slots

1

Connection for NPN-sensors

TRUE

Max. current carrying capacity per socket

1.8

Operating voltage

24 V

Max. total current

1.8

Max. current carrying capacity per I/O signal

0.5

Number of poles sensor/actuator slots

16

Colour housing

Grey

Thread sleeves sensor/actuator slots

Other

Material of contact surface

Other

With potential separation

FALSE

Material contact body

Other copper alloys

Height

70

Degree of protection (IP)

IP2X

Connectable conductor cross section

0.09…2.5 mm²

Width

125

Rated voltage

24

Diameter contact female

2.5

With LED indication

FALSE

Pollution degree

2

Material housing

Plastic, metallized

Number of channels per connector slot

16

Explosion safety category for dust

None

Depth

67

Explosion safety category for gas

None

Cable length configurable

TRUE

Material insulation body

Other

Cable outer diameter for cable gland

0.09…2.5 mm

Type of branches for sensor-/actuator cables

Other

Operation temperature

-5…60 °C

Fix cable version suitable for cable guide chain

FALSE
