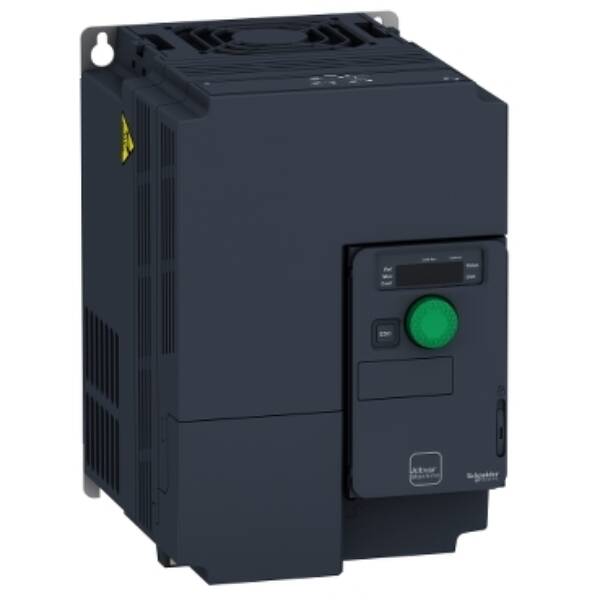

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 2.2kg and its dimensions are 150mm wide, 232mm high, 172mm deep. Altivar Machine ATV320 meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Brand

Schneider Electric

Range

Altivar Machine ATV320

Part No

ATV320U75N4C

Weight (kg)

4.74 kg

Type

Altivar Machine ATV320

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Type of converter

U converter

With optical interface

FALSE

Mains voltage

380…500 V

Max. output frequency

599

Height

232

Mains frequency

50/60 Hz

Supporting protocol for INTERBUS-Safety

FALSE

Width

150

With control unit

TRUE

With PC connection

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

178

Supporting protocol for DeviceNet Safety

FALSE

Max. output at quadratic load at rated output voltage

7.5

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

7.5

Number of phases output

3

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Relative symmetric net frequency tolerance

5

Supporting protocol for PROFIBUS

TRUE

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Application in domestic- and commercial area permitted

FALSE

Supporting protocol for CAN

TRUE

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

TRUE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

TRUE

Number of digital outputs

1

Supporting protocol for MODBUS

TRUE

Number of digital inputs

6

Supporting protocol for Data-Highway

FALSE

Number of analogue outputs

1

4-quadrant operation possible

TRUE

Number of analogue inputs

3

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

1

Nominal output current I2N

17

Degree of protection (NEMA)

1

Max. output voltage

550
