"PanelSet S3X stainless 304L, Scotch Brite® finish, H1200xW1000xD300 mm." - Schneider Electric - NSYS3X121030

"PanelSet S3X stainless 304L, Scotch Brite® finish, H1200xW1000xD300 mm." - Schneider Electric - NSYS3X121030

NSYS3X121030

"PanelSet S3X stainless 304L, Scotch Brite® finish, H1200xW1000xD300 mm." - Schneider Electric - NSYS3X121030

Enclosures

~~List Price £2,023.25 +VAT~~

Our Price £1,517.44 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

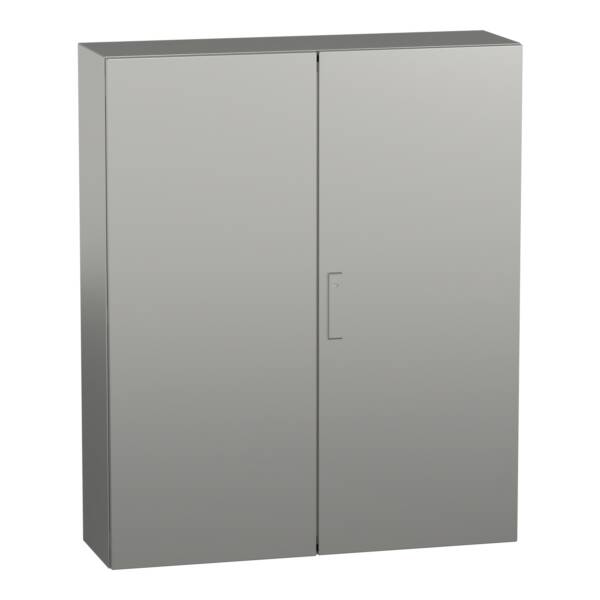

"PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 1200mm, 1000mm and 300mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, two plain doors and one lock" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a three lock points lock with a 3mm double-bar insert" "The doors can be removed for maintenance purposes" "The net weight of the enclosure is 51,8kg"

Brand: Schneider Electric
Part No: NSYS3X121030
Weight (kg): 51.80 kg
Couplable: FALSE
With mounting plate: FALSE
Freestanding: FALSE
With glazed door: FALSE
With cover: FALSE
Suitable for metrical mounting: TRUE
RAL-number: 7035
Transparent cover: FALSE
Height: 1200
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: TRUE
Colour: Stainless steel
Width: 1000
Intermediate mounting: FALSE
Surface finishing: Other
Number of doors: 1
Material: Stainless steel
Number of locks: 1
Suitable for outdoor set-up: FALSE
Corner model: FALSE
Suitable for wall mounting: TRUE
Material quality: Stainless steel 304 (V2A)
Depth: 300
Suitable for wall built-in: FALSE
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 250
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
With rear door: FALSE
Pole fastening: FALSE
Max. permissible load of the enclosure according to IEC 62208: 50
Max. permissible load of the door(s) according to IEC 62208: 50
