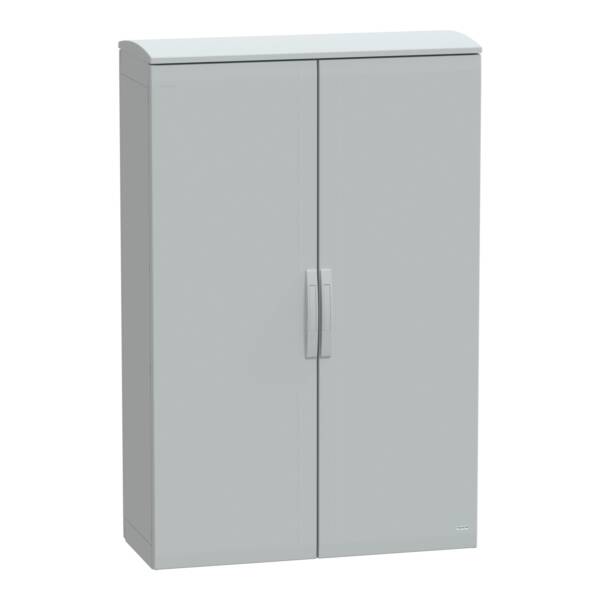

"This PLAT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It has an open top and sealed bottom, assembled with side parts" "The enclosure measures 1500mm in height, 1000mm in width, and 420mm in depth" "It is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "It consists of two side parts, two plain front doors, two rear panels, and one canopy" "The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a handle that has a 5mm double-bar insert" "The doors and rear panels are also removable for maintenance purposes, and the canopy can be removed by fixing elements" "The enclosure is designed to offer robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP44 (IEC 60529), providing high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLAT15104G

Weight (kg)

71.00 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

FALSE

With cover

FALSE

Suitable for metrical mounting

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1500

Degree of protection (IP)

IP44

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Grey

Width

1000

Intermediate mounting

FALSE

Surface finishing

Untreated

Material

Plastic

Number of doors

2

Suitable for outdoor set-up

TRUE

Number of locks

1

Corner model

FALSE

Material quality

Polyester (PET)

Suitable for wall mounting

FALSE

Depth

420

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

Other

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

2069

Max. permissible load of the door(s) according to IEC 62208

431
