PC box IP66 IK08 RAL7035 Int.H105W105D55 Ext.H116W116D62 opaque PC cover H10 - Schneider Electric - NSYTBP11116
PC box IP66 IK08 RAL7035 Int.H105W105D55 Ext.H116W116D62 opaque PC cover H10 - Schneider Electric - NSYTBP11116

NSYTBP11116

PC box IP66 IK08 RAL7035 Int.H105W105D55 Ext.H116W116D62 opaque PC cover H10 - Schneider Electric - NSYTBP11116

Enclosures

List Price £10.37 +VAT

Our Price £7.78 +VAT

SAVE 25% OFF List Price
Fast Track Delivery Product
Get in touch

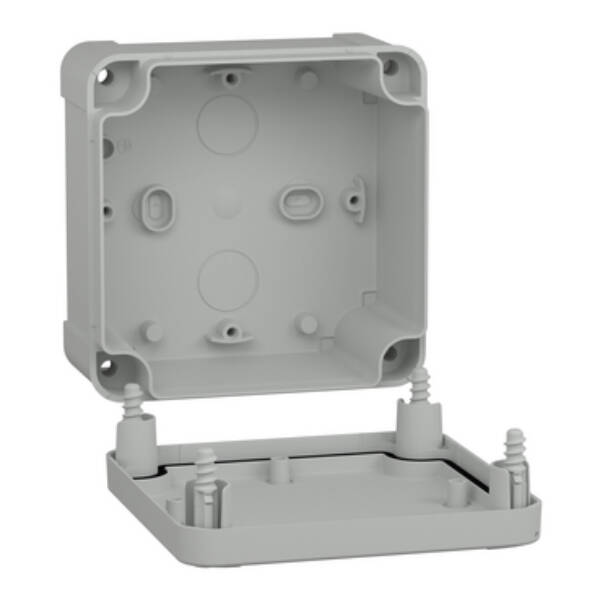

Thalassa TBP industrial PC box with opaque PC cover H10. Int is 105 x 105 x 55 mm. Ext is 116 x 116 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Brand
Schneider Electric
Range
PanelSeT TBP
Part No
NSYTBP11116
Weight (kg)
0.17 kg
Type
Thalassa TBP
Surface protection
Untreated
With mounting plate
FALSE
Type of cover
Cover
Extension possible
FALSE
RAL-number
7035
Type of door
None
Height
116
Degree of protection (IP)
IP66
Transparent cover/door
FALSE
Internal depth
55
Cover model
Closed
Colour
Grey
Circuit integrity
None
Width
116
Suitable for outdoor use
TRUE
Material housing
Plastic
Mounting method
Surface mounted (plaster)
Protection class
II
Depth
62
With lock
FALSE
Impact strength
IK08
Degree of protection (NEMA)
4X

Datasheet for NSYTBP11116 - PC box IP66 IK08 RAL7035 Int.H105W105D55 Ext.H116W116D62 opaque PC cover H10 - Schneider Electric - NSYTBP11116
