"PanelSet S3X stainless 304L, Scotch Brite® finish, H1000xW800xD300 mm." - Schneider Electric - NSYS3X10830T

"PanelSet S3X stainless 304L, Scotch Brite® finish, H1000xW800xD300 mm." - Schneider Electric - NSYS3X10830T

NSYS3X10830T

"PanelSet S3X stainless 304L, Scotch Brite® finish, H1000xW800xD300 mm." - Schneider Electric - NSYS3X10830T

Enclosures

~~List Price £1,177.43 +VAT~~

Our Price £883.07 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

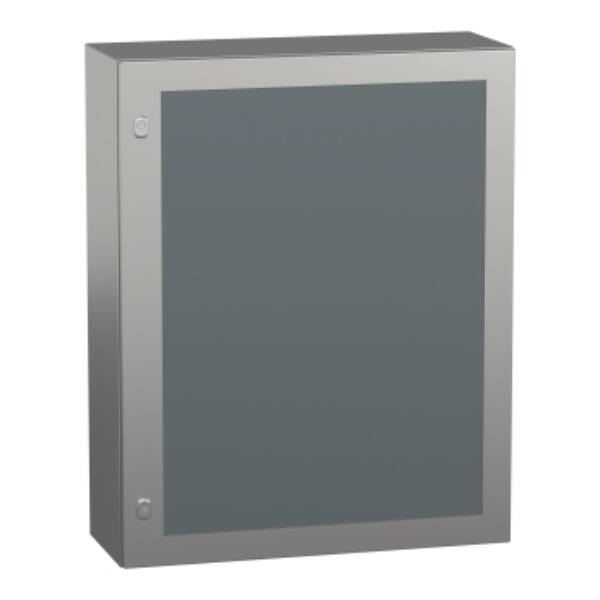

"PanelSet S3X is a stainless steel 304L wall-mounting enclosure designed for multi-purpose applications and resistance to corrosion" "It has a nominal height, width and depth of 1000mm, 800mm and 300mm respectively and has an IK08 (IEC62262) and an IP66 (IEC60529) rating, making it dust and water resistant" "The enclosure is made with Scotch-Brite® brushed surface finish and the door is glazed with Securit glass" "The door has two lock points lock with a 3mm double-bar insert and can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 35kg" "It is UL 508 type A and CAN/CSA 22 certified and meets IEC 62208 standards"

Brand: Schneider Electric
Part No: NSYS3X10830T
Weight (kg): 35.00 kg
Couplable: FALSE
With mounting plate: FALSE
Freestanding: FALSE
With glazed door: TRUE
Suitable for metrical mounting: TRUE
With cover: FALSE
RAL-number: 7035
Transparent cover: FALSE
Height: 1000
Degree of protection (IP): IP55
Pitched roof: FALSE
Floor standing wall model: TRUE
Colour: Stainless steel
Width: 800
Intermediate mounting: FALSE
Surface finishing: Other
Number of doors: 1
Material: Stainless steel
Number of locks: 1
Corner model: FALSE
Suitable for outdoor set-up: FALSE
Suitable for wall mounting: TRUE
Material quality: Stainless steel 304 (V2A)
Depth: 300
Suitable for wall built-in: FALSE
Pre-stamping: FALSE
Max. permissible load of the mounting plate according to IEC 62208: 250
With door: TRUE
Mounting plate depth-adjustable: FALSE
Impact strength: IK08
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 12
With rear door: FALSE
Pole fastening: FALSE
Max. permissible load of the enclosure according to IEC 62208: 50

Datasheet for NSYS3X10830T - "PanelSet S3X stainless 304L, Scotch Brite® finish, H1000xW800xD300 mm." - Schneider Electric - NSYS3X10830T

Download
