Brand
-
Schneider Electric
-
Range
-
PanelSeT for outdoors operation
-
Part No
-

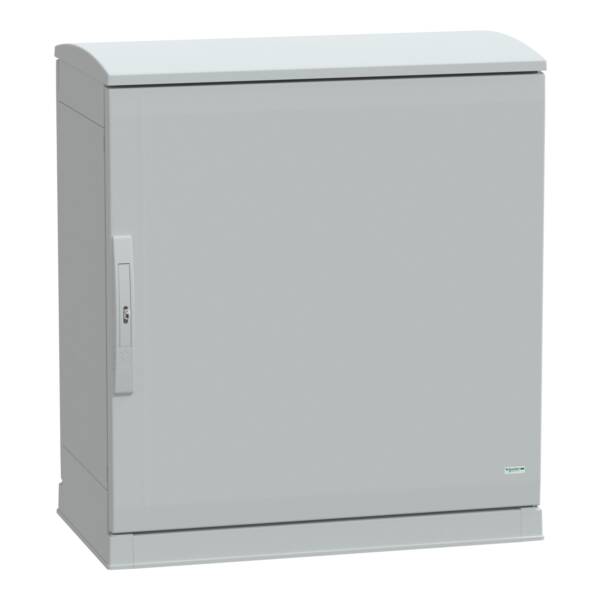

NSYPHDZT774P
-
Weight (kg)
-
31.83 kg
-
Type
-
Spacial SFHD / S3HD, Thalassa PHD
-
Couplable
-
FALSE
-
With mounting plate
-
FALSE
-
With glazed door
-
FALSE
-
With cover
-
FALSE
-
Suitable for metrical mounting
-
TRUE
-
RAL-number
-
7035
-
Transparent cover
-
FALSE
-
Height
-
843
-
Degree of protection (IP)
-
IP55
-
Pitched roof
-
TRUE
-
Floor standing wall model
-
TRUE
-
Colour
-
Grey
-
Width
-
750
-
Intermediate mounting
-
TRUE
-
Surface finishing
-
Untreated
-
Number of doors
-
1
-
Material
-
Plastic
-
Suitable for outdoor set-up
-
TRUE
-
Corner model
-
FALSE
-
Number of locks
-
1
-
Material quality
-
Polyester (PET)
-
Suitable for wall mounting
-
FALSE
-
Suitable for wall built-in
-
FALSE
-
Depth
-
420
-
With door
-
TRUE
-
Mounting plate depth-adjustable
-
FALSE
-
Impact strength
-
IK10
-
With ventilation door
-
FALSE
-
EMC-version
-
FALSE
-
Degree of protection (NEMA)
-
12
-
With rear door
-
FALSE
-
Pole fastening
-
FALSE
-
Max. permissible load of the enclosure according to IEC 62208
-
500
-
Max. permissible load of the door(s) according to IEC 62208
-
16
