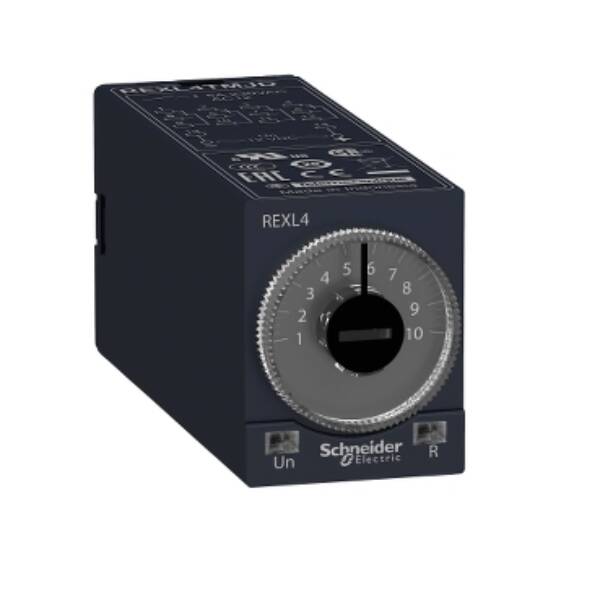

on-delay timing relay - 0.1 s..100 h - 24 V AC - 4 OC - Schneider Electric - REXL4TMB7

on-delay timing relay - 0.1 s..100 h - 24 V AC - 4 OC - Schneider Electric - REXL4TMB7

REXL4TMB7

on-delay timing relay - 0.1 s..100 h - 24 V AC - 4 OC - Schneider Electric - REXL4TMB7

Control

~~List Price £56.38 +VAT~~

Our Price £42.29 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

This Harmony REXL ON-delay timer can be set between 0.1 seconds and 100 hours. It provides function A and it uses plug-in mounting. This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Brand: Schneider Electric
Range: Harmony Timer Relays
Part No: REXL4TMB7
Weight (kg): 0.05 kg
Type: Harmony Timer Relays
Type of electric connection: Plug-in connection
Function delay on de-energization: FALSE
Clock function, starting with pause, variable: FALSE
Pluggable on auxiliary contact block: FALSE
Clock function, starting with pulse, variable: FALSE
Function floating contact on de-energization: FALSE
Function pulse shaping: FALSE
Suitable for front mounting: FALSE
Number of outputs, delayed, change-over contact: 4
Function delay-on energization: TRUE
Height: 27
Voltage type for actuating: AC
With semiconductor output: FALSE
Suitable for DIN rail (top hat rail) mounting: FALSE
Width: 21
Rated control supply voltage Us at AC 50HZ: 24 V
Rated control supply voltage Us at AC 60HZ: 24 V
Function floating contact on energization: FALSE
Nominal current: 5
Depth: 63
Outputs, reversible delayed/undelayed: FALSE
With plug-in socket: TRUE
Function star-delta: FALSE
Function flashing, starting with pause, fixed time: FALSE
Rated control supply voltage Us at DC: 0 V
Function flashing, starting with pulse, fixed time: FALSE
Remote operation possible: FALSE
Time range: 0.1…360000 s
Suitable for remote control: FALSE

Datasheet for REXL4TMB7 - on-delay timing relay - 0.1 s..100 h - 24 V AC - 4 OC - Schneider Electric - REXL4TMB7
