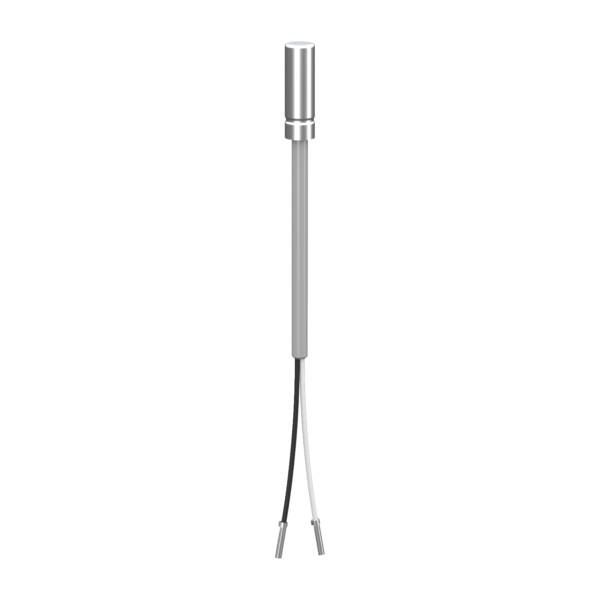

NTC 1,5m IP68 6x20 -50+110°C Grey - Schneider Electric - TM1STNTCSN62015
NTC 1,5m IP68 6x20 -50+110°C Grey - Schneider Electric - TM1STNTCSN62015

TM1STNTCSN62015

NTC 1,5m IP68 6x20 -50+110°C Grey - Schneider Electric - TM1STNTCSN62015

Automation

List Price £5.00 +VAT

Our Price £4.00 +VAT

SAVE 20% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 50 to 110 degrees Celsius." "This temperature probe has an IP 68 rate and is equipped with a 1.5-meter two-conductor cable." "It is an NTC probe." "It is furnished with 2-conductor cable for controller side for electrical connection." "The cable measures 1.5m." "It measures 20mm long, 6mm wide, and weighs 0.144/kg." "It is made to control temperature in HVAC or Pumping Applications." "It is sold in a 8-piece package." "It has a clip-on fixing mode." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."
Brand
Schneider Electric
Range
Modicon M171/M172/M173
Part No
TM1STNTCSN62015
Weight (kg)
0.02 kg
Type
Modicon M171/M172
Error registration possible
FALSE
Trend representation
FALSE
Supporting protocol for MP (multi point)
FALSE
Average temperature measuring
FALSE
Suitable for duct mounting
TRUE
Suitable for ceiling mounting
FALSE
Material element
Other
Fixed cable to sensor
TRUE
Insert length
20
With reverse polarity protection
FALSE
Standby push button
FALSE
Number of measuring points
1
Passive temperature measurement
TRUE
Measurement of relative air humidity
FALSE
Wireless
FALSE
Scope of application
Immersion tube
Measurement of VOC
FALSE
Sensor element outside housing
FALSE
Active temperature measurement
FALSE
Suitable for liquids
TRUE
Temperature measuring range
-50…110 Degrees celsius
Diameter sensor element
6
Compatible with Apple HomeKit
FALSE
Compatible with Google Assistant
FALSE
Compatible with Amazon Alexa
FALSE
Housing height
6
Housing width
20
Measurement of CO2
FALSE
Measurement of dewpoint
FALSE
With display
FALSE
Suitable for tube mounting
TRUE
Cable length
1.5
Sensor element inside housing
TRUE
Type of electric connection
Other
Tolerance
1
NFC (Near Field Communication)
FALSE
With housing
TRUE
IFTTT support available
FALSE
Wi-Fi-compatible
FALSE
Housing colour
Black
Suitable for gases
TRUE
Type of power supply
None
Supporting protocol for KNX
FALSE
Degree of protection (IP)
IP68
Offset setting possible
FALSE
Enthalpy measurement
FALSE
Potentiometer with adjustment knob
FALSE
Particulate matter measurement (PM)
FALSE
Sensor type
NTC, 10K
Measurement of absolute air humidity
FALSE
Supporting protocol for BACnet
FALSE
LoRa technology
FALSE
Suitable for air
TRUE
Explosion-proof
FALSE
Supporting protocol for Modbus
FALSE
UV resistant
TRUE
Bluetooth
FALSE
Suitable for wall mounting
FALSE
With mounting material
FALSE
Technology
Other
Sensor length
20
Number of output signals
1

Datasheet for TM1STNTCSN62015 - NTC 1,5m IP68 6x20 -50+110°C Grey - Schneider Electric - TM1STNTCSN62015
