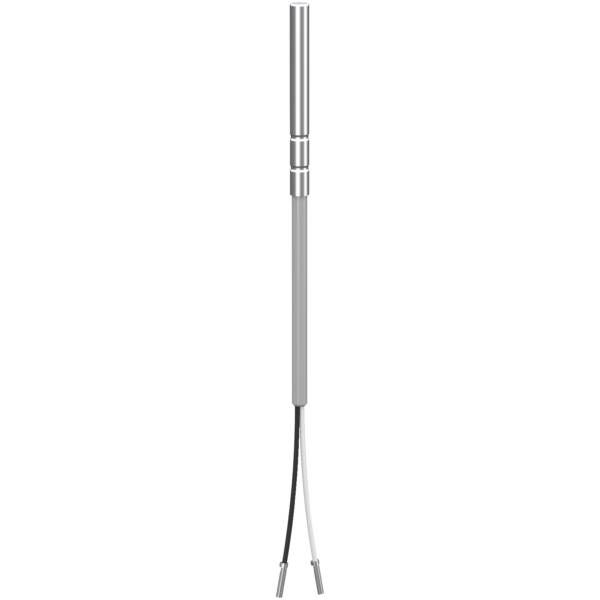

"This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This probe controls the temperature level from minus 50 to 110 degrees Celsius." "This temperature probe has an IP 67 rate and is equipped with a 1.5-meter two-conductor cable." "It is an NTC probe." "It is furnished with 2-conductor cable for controller side for electrical connection." "The cable measures 1.5m." "It measures 40mm long, 4mm wide, and weighs 0.144kg." "It is made to control temperature in HVAC or Pumping Applications." "It is sold in a 8-piece package." "It has a clip-on fixing mode." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM1STNTCSF44015

Weight (kg)

0.02 kg

Type

Modicon M171/M172

Error registration possible

FALSE

Trend representation

FALSE

Average temperature measuring

FALSE

Supporting protocol for MP (multi point)

FALSE

Suitable for duct mounting

TRUE

Suitable for ceiling mounting

FALSE

Material element

Other

Fixed cable to sensor

TRUE

Insert length

40

With reverse polarity protection

FALSE

Number of measuring points

1

Standby push button

FALSE

Passive temperature measurement

TRUE

Measurement of relative air humidity

FALSE

Wireless

FALSE

Measurement of VOC

FALSE

Scope of application

Immersion tube

Sensor element outside housing

FALSE

Active temperature measurement

FALSE

Suitable for liquids

FALSE

Temperature measuring range

-50…110 Degrees celsius

Diameter sensor element

4

Compatible with Apple HomeKit

FALSE

Compatible with Google Assistant

FALSE

Compatible with Amazon Alexa

FALSE

Housing height

4

Housing width

40

Measurement of CO2

FALSE

Measurement of dewpoint

FALSE

With display

FALSE

Suitable for tube mounting

TRUE

Cable length

1.5

Sensor element inside housing

TRUE

Type of electric connection

Other

NFC (Near Field Communication)

FALSE

Tolerance

1

With housing

TRUE

IFTTT support available

FALSE

Wi-Fi-compatible

FALSE

Suitable for gases

TRUE

Housing colour

Other

Type of power supply

None

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP67

Enthalpy measurement

FALSE

Offset setting possible

FALSE

Potentiometer with adjustment knob

FALSE

Particulate matter measurement (PM)

FALSE

Sensor type

NTC, 10K

Supporting protocol for BACnet

FALSE

Measurement of absolute air humidity

FALSE

LoRa technology

FALSE

Suitable for air

TRUE

Explosion-proof

FALSE

Supporting protocol for Modbus

FALSE

UV resistant

TRUE

Bluetooth

FALSE

Suitable for wall mounting

FALSE

With mounting material

FALSE

Technology

Other

Sensor length

40

Number of output signals

1
