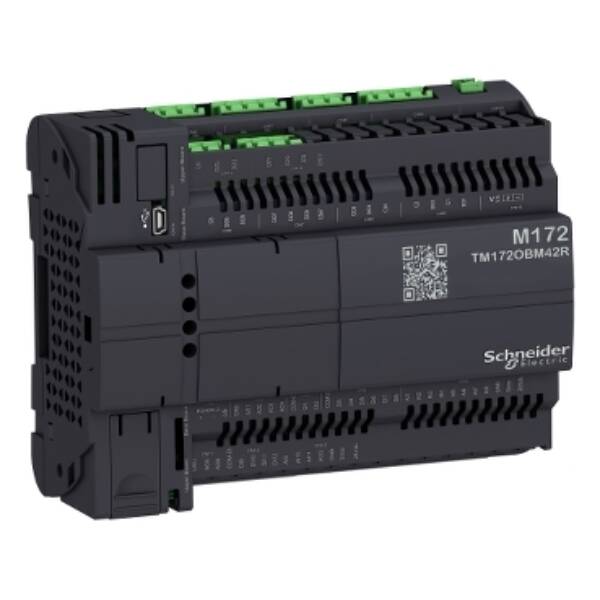

"This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This controller figures 12 digital inputs, 12 analog inputs, 12 digital outputs, and 6 analog outputs." "This controller embeds one CAN expansion bus port, two RS485 ports, one USB-B port, and one Communication module port." "It is a programmable logic controller for HVAC and Pumping applications." "Dis are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm." "DOs are SPDT relays, or SPST 3A with the same or independent common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc)." "It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.480kg." 0 "This controller is designed for HVAC solutions." "It is certified by CE, RCM, EAC, CSA and CURus." "It is compatible with screw terminal blocks, remote display, and communication modules." "It is sold in a 1-piece package." "It is designed for 35mm rail mounting." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand

Schneider Electric

Range

Modicon M171/M172/M173

Part No

TM172OBM42R

Weight (kg)

0.42 kg

Type

Modicon M171/M172

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

1

SIL according to IEC 61508

None

Number of relay outputs

12

With optical interface

FALSE

System accessory

FALSE

Additional program memory possible

FALSE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

110

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

144

Redundancy

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Depth

60.5

Explosion safety category for gas

None

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

With display

FALSE

Processing time (1K, binary operation)

0.3

Supporting protocol for SafetyBUS p

FALSE

Model

Compact

Voltage type of supply voltage

AC/DC

Type of memory

Other

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Memory size

0.512

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supply voltage AC 50 Hz

24 V

Supply voltage AC 60 Hz

24 V

Supporting protocol for TCP/IP

FALSE

Front build in possible

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

TRUE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Number of digital outputs

12

Supporting protocol for MODBUS

FALSE

Suitable for safety functions

FALSE

Number of digital inputs

12

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

20…38 V

Number of analogue outputs

6

Rack-assembly possible

FALSE

Number of analogue inputs

12

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of HW-interfaces RS-485

2
