TM171ACB4OAO2M

Modicon M171 Optimized AO Connector 2m cable - Schneider Electric - TM171ACB4OAO2M

Automation

~~List Price £6.16 +VAT~~

Our Price £4.93 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

Get in touch

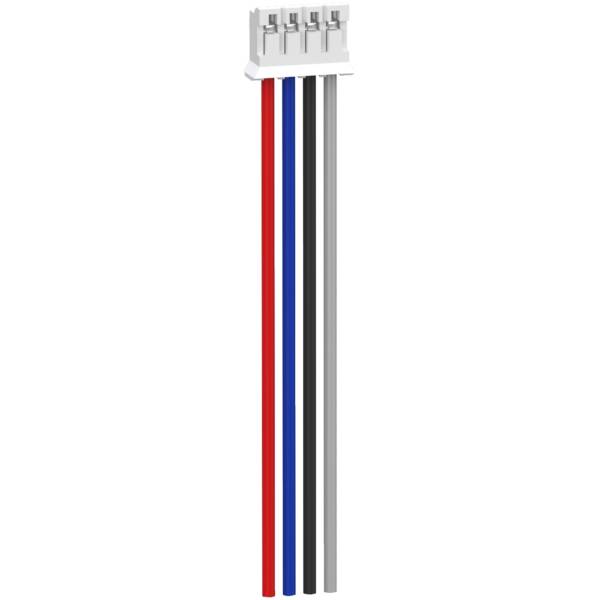

"This connector is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This Analog output connector is an accessory to the M171 optimized controllers." "It is a Cordset equipped with a 4-pin connector at one end." "It allows to connect the Analog outputs to the controller." "The cable measures 2m." "It weighs 0.125kg." "This connection accessory is dedicated to M171 Optimized controllers." "It is sold in a 5-piece package." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Brand: Schneider Electric
Range: Modicon M171/M172/M173
Part No: TM171ACB4OAO2M
Weight (kg): 0.04 kg
Type: Modicon M171/M172
Approved type of underground installation: Other
Armouring/reinforcement: None
Permitted cable outer temperature during assembling/handling: 10…50 Degrees celsius
Permitted cable outer temperature after assembling without vibration: 10…50 Degrees celsius
Number of stranding elements: 1
Cable type: Other
Circuit integrity according to IEC 60331-23: FALSE
Halogen free according to EN IEC 60754-2: FALSE
Oil resistant according to EN IEC 60811-404: FALSE
Protective sheath: Other
Specification material outer sheath: Other
Specification core insulation: Other
Min. permitted bending radius, stationary application/permanent installation: 15
Min. permitted bending radius, moving application/free movement: 15
Compatible with Grade2TV according to XP-C 90-483: FALSE
Compatible with Grade3TV according to XP-C 90-483: FALSE
Min. permitted bending radius, moving application with forced guidance: 15
With rip cord: FALSE
Colour outer sheath: Other
Stranding element: No
Suitable for use as security alarm cable: FALSE
Material armouring: Other
Category: 5
Cable width approx.: 135
Cable height approx.: 20
Weight: 0.35
Low smoke according to EN IEC 61034-2: FALSE
With rodent protection: FALSE
Radial water blocking cable: FALSE
Longitudinal water blocking cable: FALSE
Halogen free according to EN IEC 60754-3: FALSE
Conductor surface: Other
Material outer sheath: Other
Stranding: Other
Suitable as signalling cable: FALSE
Outer diameter approx.: 10
Diameter conductor: 1
Drain wire: FALSE
Screen over stranding element: None
Conductor material: Copper
Suitable for underground installation: FALSE
Suitable as telephone cable: FALSE
Suitable as computer data cable: TRUE
Nominal cross section conductor: 0.8
Material core insulation: Other
Number of sheath layers: 1
Core identification according to HD 308 S2: FALSE
AWG size: 24
Flame retardant according to IEC 60332-1-2: FALSE
Flame retardant according to IEC 60332-3-22 (Cat A): FALSE
Flame retardant according to IEC 60332-3-21 (Cat A F/R): FALSE
Flame retardant according to IEC 60332-3-24 (Cat C): FALSE
Duplex: FALSE
Flame retardant according to IEC 60332-3-23 (Cat B): FALSE
Halogen free according to EN IEC 60754-1: FALSE
Flame retardant according to IEC 60332-3-25 (Cat D): FALSE
Number of cores: 4
Core identification: Colour
UV resistant: FALSE
Conductor category: Class 5 = flexible
Certified for shipboard application: FALSE
Cable geometry: Round
