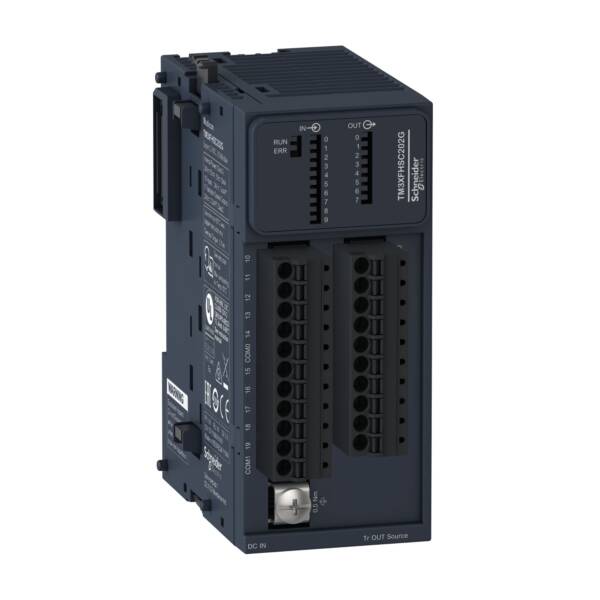

"This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs." "This counter module provides 10 fast inputs and 8 fast outputs." "It is a high-speed counter with reflex output management, no event management." "It is used to count the pulses generated by a sensor or to process signals from an incremental encoder." "Its counting frequency is 200kHz. It works via a 24VDC external power supply." "It is furnished with a removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply." "It is an IP20-rated product. Its dimensions are 39mm wide, 85mm deep and 90mm high. It weighs 0.150kg" "It is designed to accept high-speed pulse-type input signals for counting and to provide high-speed pulse-type output signals." "This product is certified by CSA, cULus, IACS E10, RCM, CE, UKCA and EAC." "This module is compatible with Modicon M262 motion/logic controller and is configurable with EcoStruxure machine expert software." "It is delivered in 1 package (PCE type)." "It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting." "The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers." "From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution."

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3XHSC202G

Weight (kg)

0.21 kg

Type

Modicon TM3

Supporting protocol for SERCOS

FALSE

Suitable for single-axis positioning

FALSE

Suitable for single-axis controller

FALSE

Suitable for multi-axis positioning

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

System accessory

FALSE

Fieldbus connection over separate bus coupler possible

FALSE

Height

90

Supporting protocol for INTERBUS-Safety

FALSE

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Depth

85

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Function block automatic reset

FALSE

Function block contactless working protection installation

FALSE

Number of functions

2

Suitable for counting

TRUE

Suitable for weighing

FALSE

Radio standard Bluetooth

FALSE

Function block emergency stop

FALSE

Function block restart blockage

FALSE

Radio standard WLAN 802.11

FALSE

Function block access control

FALSE

Function block affirm pushbutton

FALSE

Suitable for NC

FALSE

Suitable for SSI

FALSE

Suitable for welding control

FALSE

Suitable for pressure control

FALSE

Function block operating mode selection

FALSE

IO link master

FALSE

Suitable for incremental data detection

FALSE

Suitable for safety functions

FALSE

Suitable for electronic positioning

TRUE

Suitable for CNC

FALSE

Function block 2-hand switching

FALSE

Suitable for detection absolute value

FALSE

Supporting protocol for LON

FALSE

Suitable for flux controller

FALSE

Suitable for flux measurement

FALSE

Contactor control function block

FALSE

Suitable for flying saw

FALSE

Suitable for multi-axis control

FALSE

Suitable for path controller

FALSE

Suitable for cam controller

FALSE

Degree of protection (NEMA)

2

Frequency measurement

TRUE

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

39

Radio standard GSM

FALSE

Explosion safety category for dust

None

Radio standard UMTS

FALSE

Explosion safety category for gas

None

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Suitable for temperature control

FALSE

Supporting protocol for ASI

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Front built-in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Supporting protocol for Modbus

FALSE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
