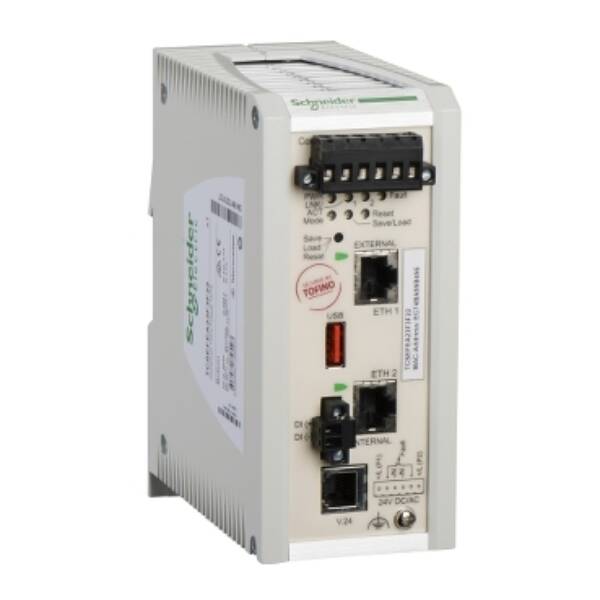

This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 214, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.

Brand

Schneider Electric

Range

Modicon Networking

Part No

TCSEFEC23F3F21

Weight (kg)

1.03 kg

Type

Modicon Switch

xDSL

FALSE

Firewall

TRUE

UMTS

FALSE

Analogue

FALSE

Number of ports 10/100 Mbps LAN

2

USB

FALSE

VPN

TRUE

Mounting method

DIN rail (top hat rail)

ISDN

FALSE

Long-Term Evolution (LTE)

FALSE

Radio protocol

Other

Empty chassis

FALSE

Ethernet

TRUE

Frequency band

Other

Degree of protection (IP)

IP20
