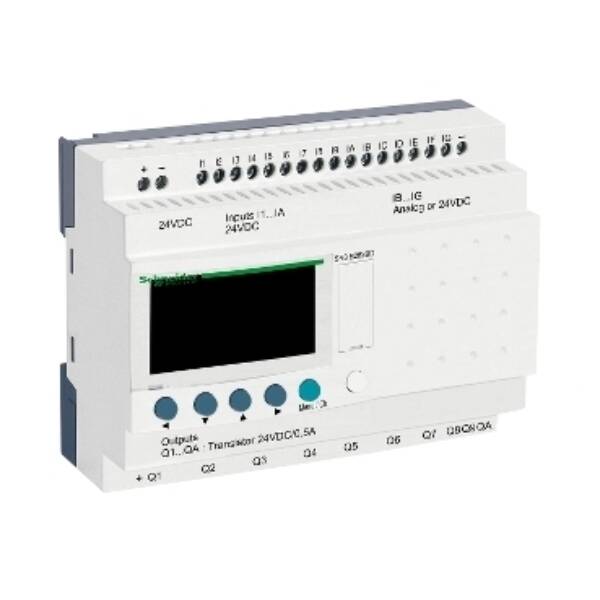

modular smart relay Zelio Logic - 26 I O - 24 V DC - clock - display - Schneider Electric - SR3B262BD

SR3B262BD

modular smart relay Zelio Logic - 26 I O - 24 V DC - clock - display - Telemecanique - SR3B262BD

Automation

~~List Price £264.92 +VAT~~

Our Price £211.94 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Brand: Schneider Electric
Range: Smart Relays - Zelio Logic
Part No: SR3B262BD
Weight (kg): 0.30 kg
Type: Smart Relays - Zelio Logic
Expandable: TRUE
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces other: 1
SIL according to IEC 61508: None
With optical interface: FALSE
Performance level acc. EN ISO 13849-1: None
Basic device: TRUE
Radio standard GPRS: FALSE
With relay output: FALSE
Height: 90
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 124.6
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: None
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 59.5
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Expansion device: FALSE
With display: TRUE
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
With timer: TRUE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: FALSE
Radio standard WLAN 802.11: FALSE
Appendant operation agent (Ex ia): FALSE
Supporting protocol for PROFIBUS: FALSE
Front build in possible: TRUE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: FALSE
Appendant operation agent (Ex ib): FALSE
Degree of protection (IP): IP20
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: TRUE
Supporting protocol for DeviceNet: FALSE
Suitable for safety functions: FALSE
Switching current: 0.5
Supporting protocol for MODBUS: FALSE
Number of digital outputs: 10
Supporting protocol for Data-Highway: FALSE
Number of digital inputs: 16
Supply voltage DC: 24 V
Number of analogue inputs: 6
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of HW-interfaces RS-232: 1

Datasheet for SR3B262BD - modular smart relay Zelio Logic - 26 I O - 24 V DC - clock - display - Schneider Electric - SR3B262BD

Download
