softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U
softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U

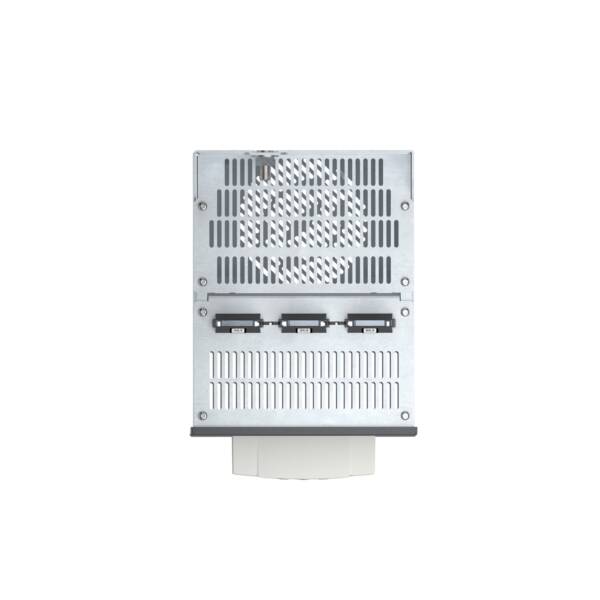

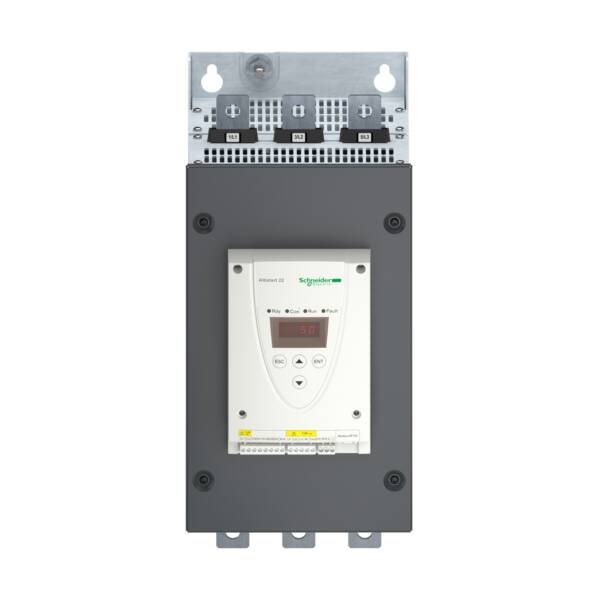

ATS22C21S6U

softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U

Automation

List Price £2,543.29 +VAT

Our Price £1,907.47 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 210A, a rated power from 60HP to 200HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Brand
Schneider Electric
Range
Altistart 22
Part No
ATS22C21S6U
Weight (kg)
25.00 kg
Type
Altistart 22
With display
FALSE
Rated control supply voltage AC 50 Hz
110 Volt
Rated control supply voltage AC 60 Hz
110 Volt
Rated operating voltage Ue
208…600 Volt
Release class
Other
Rated operation current Ie at 40 °C Tu
210
Internal bypass
TRUE
Torque control
TRUE
Rated power three-phase motor, inline, at 230 V
55
Voltage type for actuating
AC/DC
Rated power three-phase motor, inline, at 400 V
110
Function
Single direction
Integrated motor overload protection
TRUE
Degree of protection (IP)
IP20
Rated surrounding temperature without derating
40

Datasheet for ATS22C21S6U - softstarter-ATS22-control110V-power208V(60hp)/230V(75hp)/460V(150hp)/575V(200hp) - Schneider Electric - ATS22C21S6U

Download
