Brand
-
Schneider Electric
-
Range
-
Modicon TM3
-
Part No
-

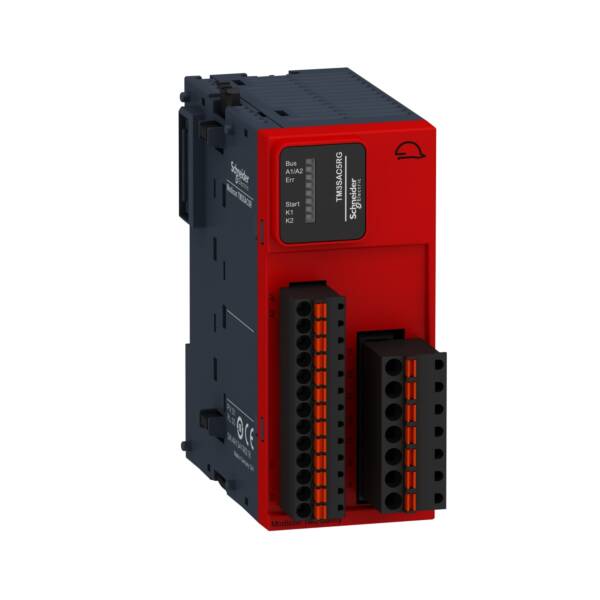

TM3SAC5RG
-
Weight (kg)
-
0.23 kg
-
Type
-
Modicon TM3
-
Release-delay
-
0.04 s
-
Type of electric connection
-
Spring clamp connection
-
Model
-
Other
-
With feedback circuit
-
FALSE
-
Number of outputs, safety related, undelayed, with contact
-
3
-
With approval according to UL
-
TRUE
-
SIL according to IEC 61508
-
2
-
Evaluation inputs
-
Other
-
Stop category acc. IEC 60204
-
1
-
Performance level acc. EN ISO 13849-1
-
Level d
-
With approval for TÜV
-
TRUE
-
With approval for BG BIA
-
FALSE
-
Height
-
94
-
Voltage type for actuating
-
DC
-
Category according to EN 954-1
-
None
-
Suitable for monitoring of position switches
-
FALSE
-
Suitable for monitoring of tactile sensors
-
FALSE
-
Suitable for monitoring of valves
-
FALSE
-
Width
-
43.7
-
Rail mounting possible
-
TRUE
-
Type of safety acc. IEC 61496-1
-
None
-
Depth
-
73
-
Suitable for monitoring of magnetic switches
-
FALSE
-
Suitable for monitoring of proximity switches
-
FALSE
-
Suitable for monitoring of emergency-stop circuits
-
TRUE
-
Suitable for monitoring of optoelectronic protection equipment
-
FALSE
-
With start input
-
FALSE
-
With muting function
-
FALSE
-
Rated control supply voltage Us at DC
-
24 V
-
With detachable clamps
-
FALSE
