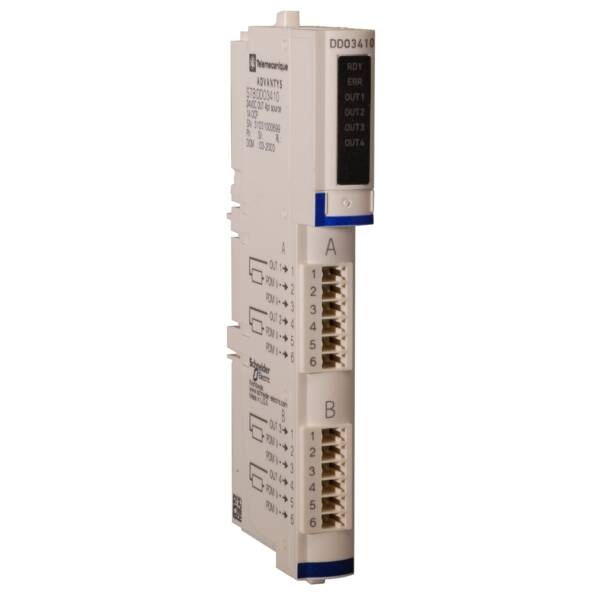

standard digital output kit - Modicon STB - 24 V DC - 4 O - Schneider Electric - STBDDO3410K

standard digital output kit - Modicon STB - 24 V DC - 4 O - Schneider Electric - STBDDO3410K

STBDDO3410K

standard digital output kit - Modicon STB - 24 V DC - 4 O - Schneider Electric - STBDDO3410K

Automation

~~List Price £72.19 +VAT~~

Our Price £57.75 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

"This output kit is part of the Modicon STB range, an offer of modular distributed I/O." "This standard digital output kit is an accessory kit for Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC)." "It includes a digital input module, an STB base, one spring clamp connector, and one screw type connector." 0 "Setting can be done via Advantys STB configuration software." "It weighs 0.11kg." 0 "The kit includes STBXBA1000 base, STBDDO3410 module, STBXTS1100 6-terminal screw type connector, and STBXTS2100 6-terminal spring clamp connector." "The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a primary controller via a bus or communication network."

Brand: Schneider Electric
Range: Advantys STB
Part No: STBDDO3410K
Weight (kg): 0.13 kg
Type: Advantys STB
Supporting protocol for SERCOS: FALSE
SIL according to IEC 61508: None
With optical interface: FALSE
Digital inputs configurable: FALSE
System accessory: TRUE
Digital outputs configurable: TRUE
Permitted voltage at output: 24 V
Performance level acc. EN ISO 13849-1: None
Permitted voltage at input: 19.2…30 V
Radio standard GPRS: FALSE
Type of voltage (input voltage): AC/DC
Height: 13.9
Time delay at signal exchange: 0.56…0.87 ms
Fieldbus connection over separate bus coupler possible: TRUE
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 128.3
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: None
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 70
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: TRUE
Supporting protocol for Foundation Fieldbus: FALSE
Output, current: 0.5
Type of electric connection: Screw connection
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
Short-circuit protection, outputs available: TRUE
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Type of digital output: Other
Radio standard Bluetooth: FALSE
Supporting protocol for ASI: FALSE
Appendant operation agent (Ex ia): FALSE
Supporting protocol for PROFIBUS: TRUE
Radio standard WLAN 802.11: FALSE
Front build in possible: FALSE
Supporting protocol for TCP/IP: TRUE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: TRUE
Appendant operation agent (Ex ib): FALSE
Degree of protection (IP): IP20
IO link master: FALSE
Supporting protocol for INTERBUS: TRUE
Type of output voltage: AC/DC
Supporting protocol for DeviceNet: TRUE
Rail mounting possible: FALSE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: TRUE
Number of digital outputs: 4
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Rack-assembly possible: TRUE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE

Datasheet for STBDDO3410K - standard digital output kit - Modicon STB - 24 V DC - 4 O - Schneider Electric - STBDDO3410K

Download
