Modicon MC80, Controller, 8 DI, 12 DO, 4 AI - Schneider Electric - BMKC8020301

Modicon MC80, Controller, 8 DI, 12 DO, 4 AI - Schneider Electric - BMKC8020301

BMKC8020301

Modicon MC80, Controller, 8 DI, 12 DO, 4 AI - Schneider Electric - BMKC8020301

Automation

~~List Price £1,074.21 +VAT~~

Our Price £859.37 +VAT

SAVE 20% OFF List Price

Estimated delivery between 7-10 working days

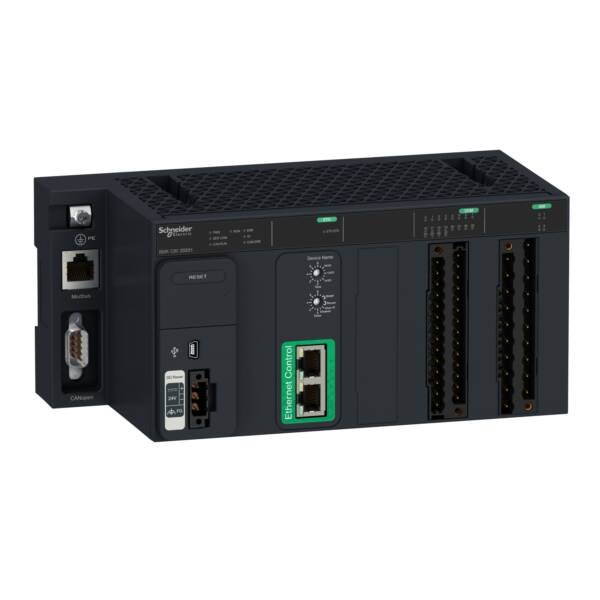

This controller is part of the Modicon MC80 range, an offer of powerful and cost-effective all-in-one compact controllers. The controller features 8 discrete inputs, 12 discrete outputs, and 4 analog inputs. It integrates 4 channels for analog inputs in addition to discrete I/O channels. It features a dual Ethernet port with embedded switch to create flexible and scalable architectures without external switches. The MC80 controller has a Modbus Serial link port for easy integration of local instrumentation or a portable HMI. It weighs 1.05kg. This product is certified by CE, CSA No 213 Class I Division 2, UL, IEC, and CSA. The MC80 PLC is compatible with the BMXFTB terminal blocks with 20 or 28 pins Modicon MC80 provides optimized operation, withstanding extreme conditions with high reliability and performance.

Brand: Schneider Electric
Range: Modicon MC80
Part No: BMKC8020301
Weight (kg): 1.19 kg
Type: Modicon MC80
Supporting protocol for SERCOS: FALSE
Number of HW-interfaces other: 1
Number of HW-interfaces USB: 1
SIL according to IEC 61508: None
Max. number of time switches: 2
With optical interface: FALSE
Additional program memory possible: FALSE
System accessory: FALSE
Performance level acc. EN ISO 13849-1: None
Radio standard GPRS: FALSE
Height: 100
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 220
Redundancy: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Radio standard GSM: FALSE
Explosion safety category for dust: None
Radio standard UMTS: FALSE
Depth: 105
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With display: FALSE
Model: Compact
Supporting protocol for SafetyBUS p: FALSE
Processing time (1K, binary operation): 0.06
Voltage type of supply voltage: AC/DC
Type of memory: NVRAM
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Memory size: 3840
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Appendant operation agent (Ex ia): FALSE
Supporting protocol for PROFIBUS: FALSE
Radio standard WLAN 802.11: FALSE
Front build in possible: FALSE
Supporting protocol for TCP/IP: TRUE
Supporting protocol for KNX: FALSE
Supporting protocol for CAN: TRUE
Appendant operation agent (Ex ib): FALSE
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: TRUE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: TRUE
Number of digital outputs: 12
Number of digital inputs: 8
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Number of analogue inputs: 4
Rack-assembly possible: FALSE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: TRUE
Number of HW-interfaces RS-485: 1
Number of HW-interfaces industrial Ethernet: 2
Number of HW-interfaces RS-232: 1

Datasheet for BMKC8020301 - Modicon MC80, Controller, 8 DI, 12 DO, 4 AI - Schneider Electric - BMKC8020301

Download
